Reimagine Analog Sound, A&ultima SP4000T
A&ultima SP4000T is the culmination of nearly two years of dedication and exploration, beginning from the planning and development stages of SP3000T.
DAC, Tube, and AMP — the essential elements of high-end audio — may be accessible to anyone. Yet even with the same elements, what is ultimately created from them is an entirely different matter. Using the canvas of SP4000, the essence of digital sound, Astell&Kern held onto one defining question over the past two years:
“How can we bring deeper emotion through analog sound?”
The answer was drawn with sincerity and endless passion, stroke by stroke. Every trace of that journey is distilled into SP4000T. Astell&Kern’s own analog sound — comfortable to listen to, yet revealing new depth and character the longer you experience it.
Discover it for yourself with A&ultima SP4000T.
Industry-first DAP with MIL-Spec Vintage Vacuum Tube Raytheon JAN6418 in Quad Configuration
Industry-first DAP with Triple Tube Mode (Triode, Ultra Linear, Pentode)
T Series Signature feature: Triple AMP System
Adjustable Tube Current with Three Levels
High Driving Mode, ESA, and Advanced DAR for superior sound quality
Full Open Android
Enhanced Octa-Core CPU
RAYTHEON JAN6418 Quad — A New Standard in Tube Configuration
The SP4000T is the industry’s first DAP to feature the MIL-Spec vintage vacuum tube RAYTHEON JAN6418 in a Quad configuration.
With independent dual-tube structures dedicated to the left and right channels respectively, the channel-separated design — once exclusive to home audio high-end tube amplifiers — has finally been brought to the world of DAPs.
But the essence is not the number of tubes. Managing multiple highly sensitive vacuum tubes is far more than a simple matter of addition. It demands answers to countless questions: How do you pair tubes with subtly different noise characteristics and gain rates? How do you overcome microphonic noise? How do you minimize output variation between left and right channels?
The four tubes in the SP4000T do not operate independently — they work in a differential configuration, with each pair facing the other in mirror symmetry. In this precise balance, music signals are amplified with twice the clarity, while common-mode noise is mutually cancelled and eliminated.
Each of the four tubes is precisely measured for its noise and gain characteristics before being paired, then fully isolated from noise through independent modular flexible PCBs and a multi-layered architecture — a design that only Astell&Kern, with its long experience in analog circuits and vacuum tubes, could bring to life.
When four hearts beat as one in perfect balance, the tube’s signature rich harmonics resonate with the deepest, most resonant sound ever heard in the SP4000T.
The SP4000T is the industry’s first DAP to feature Triple Tube Mode. Combined with the T Series Signature Triple AMP Mode and the Tube Current level adjustment first found on the SP3000T, it offers up to 54 possible combinations tailored to any genre or preference — a true Analog Sound Palette.

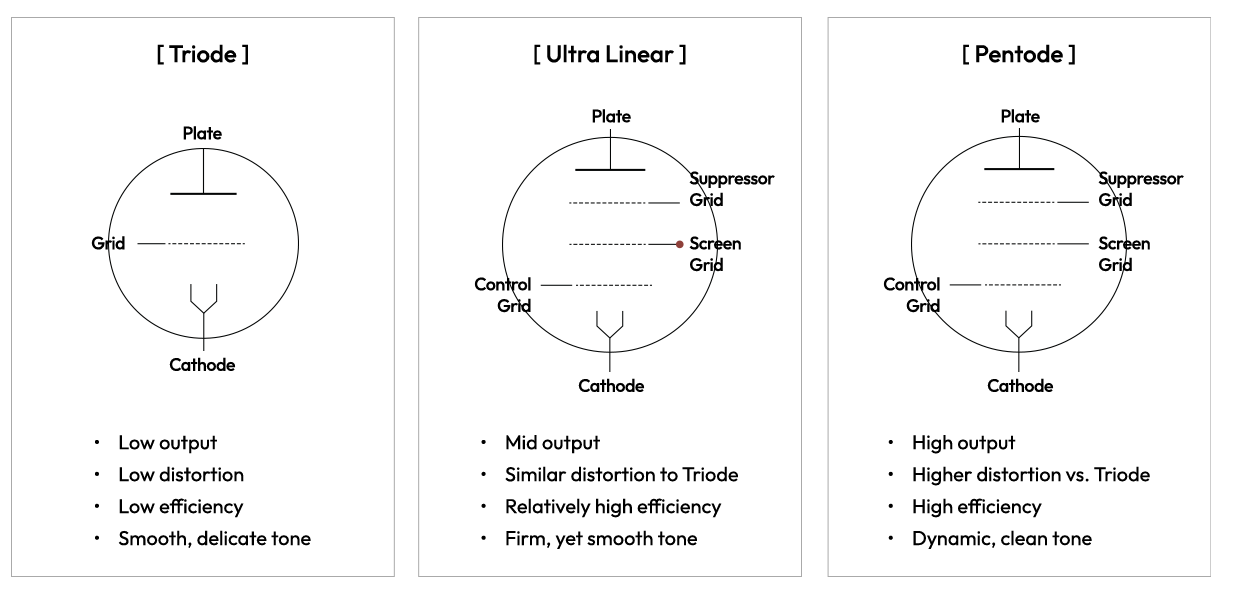

Because how you operate the same tube fundamentally changes its tonal character, Triple Tube Mode encompasses the full expressive range of a tube amplifier. The delicacy of Triode, the balance of Ultra Linear, the dynamics of Pentode — the extraordinary analog sound experience once exclusive to high-end tube amplifiers is now yours in the SP4000T.
Triode Mode — The Purest Voice of the Tube
This mode brings out the richest harmonic texture unique to vacuum tubes, letting the breath of a vocalist and the trembling of strings gently dissolve into a lush, lingering reverb.
Ultra Linear Mode — The Aesthetics of Balance
A design that blends the tonal color of Triode with the output of Pentode. The sound fades softly at its edges, yet carries a firm, solid core — a well-balanced mode capable of rendering every genre with authority.
Pentode Mode — The Most Powerful Voice of the Tube
Maximizing tube amplifier output and dynamic range, this mode retains the tube’s signature warmth while stripping away reverb — delivering a clean, powerful presence that speaks with directness and force.
* Tube Mode applies only in Tube AMP and Hybrid AMP modes.
The Perfect Harmony of Real Vacuum Tubes and OPAMP, Astell&Kern’s TRIPLE AMP SYSTEM
A&ultima SP4000T, built on Astell&Kern’s exclusive Teraton Alpha technology, achieves a perfect fusion of true analog sound from the Quad-configured Real Vacuum Tubes and the dynamic sound of the OPAMP. SP4000T offers TUBE AMP mode for the authentic analog sound of a tube amplifier, OP AMP mode delivering Astell&Kern’s signature clarity and expansive soundstage, and HYBRID AMP mode combining the best of both analog warmth and high-resolution output.
Experience a distinctly differentiated sound through the T Series’ signature amplifier technology.
Overwhelming High Resolution and Dynamics, OP AMP Mode
High resolution that reproduces the original sound without distortion, an unparalleled sense of space, and the ultimate in clarity and dynamics — OP AMP mode delivers the pinnacle of high-quality sound that Astell&Kern has pioneered across every product. The ultra-low noise and high resolution achieved through Astell&Kern’s TERATON ALPHA technology will reveal new dimensions of music you have never experienced before, across every genre.
True Analog Sound, TUBE AMP Mode
The warm texture and unique soundstage of a Tube Amp cannot be replicated by any modern digital amplifier. Beloved since the very first appearance of tube amplifiers, they remain unmatched in conveying the emotional depth of music. SP4000T’s TUBE AMP mode pairs the deep, rich analog sound exclusive to its Quad-configured Real Vacuum Tubes with groundbreaking low noise achieved through cutting-edge technology and craftsmanship — letting you lose yourself entirely in the music.
Astell&Kern’s Advanced HYBRID AMP Mode
Beyond just two modes — Tube AMP and OP AMP — a next-generation Hybrid AMP mode lets you handpick your preferred tonal character. Combining the analog sensibility with the advantages of high-resolution output, the five-stage HYBRID AMP mode allows you to freely dial in the perfect sound for your taste and your music.
The Most Delicate Analog Sound, Tube Current Option
We verified the safe operating range of the vacuum tubes and developed a system that adjusts the internal plate voltage across 3 levels, each of which changes the amplification of the tube amp — and with it, the tonal texture of the sound. Experience the subtle yet striking shifts in density and soundstage — the most delicate nuances a headphone or IEP can reveal — through tube current adjustment.

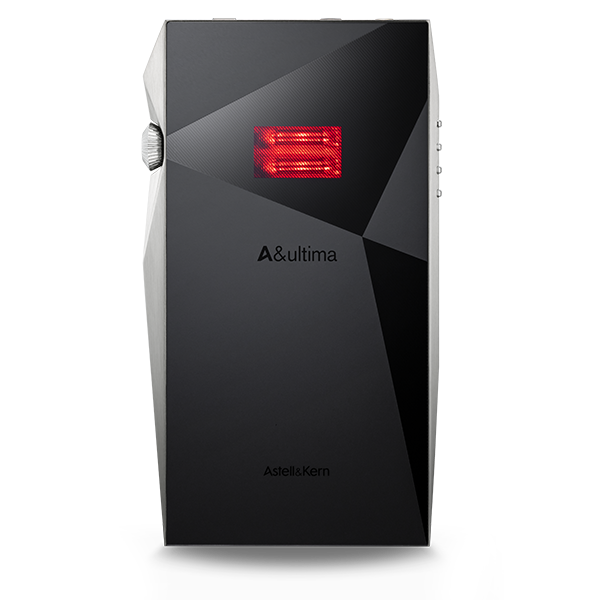

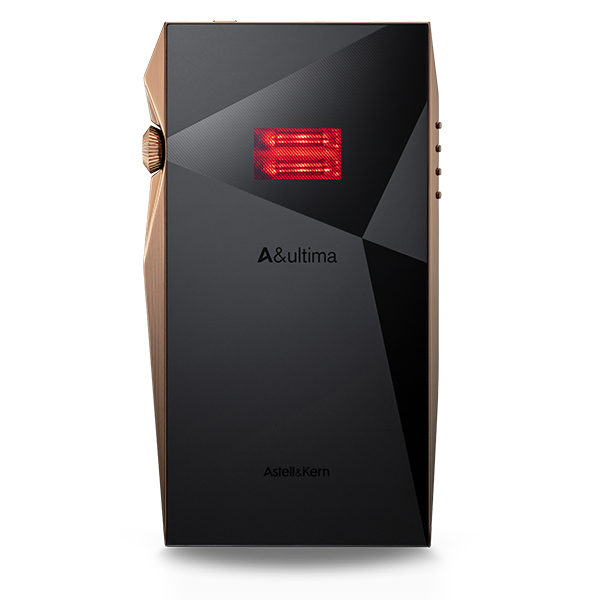

Vacuum Tube LED
While operating in Tube or Hybrid mode, the vacuum tube on the back of the SP4000T glows with a soft, warm light — amplifying the subtle, stylish analog aesthetic.
* Tube LED does not illuminate in OPAMP mode.
General Specifications
Model
SP4000T (PPF52)
Body Color
Silver, Copper
Body Material
Stainless Steel, Copper
Display
6inch 2K (2160 x 1080) touch screen
Supported Audio Formats
WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF
Sample rate
PCM : 8kHz ~ 768kHz (8/16/24/32bits per Sample)
DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo
DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo
Output Level
Unbalanced 4.2Vrms │ Balanced 8Vrms (Condition No Load)
CPU
OCTA-Core
DAC
AKM4191EQ x2 + AKM4499EX x2
Vacuum Tube
RAYTHEON JAN6418 x4 (Quad Tube)
Decoding
Support up to 32bit / 768kHz Bit to Bit playback
Input
USB Type-C input (for charging & PC & MAC)
Outputs
Unbalanced Out (3.5mm), Optical Out(3.5mm)
Balanced Out (4.4m, only 5-pole supported)
Wi-Fi
802.11 a/b/g/n/ac/ax (2.4/5GHz)
Bluetooth
V5.2 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC, LHDC, SBC, AAC)
Dimensions
3.37” (85.7mm)[W] x 5.9” (150mm)[H] x 0.76” (19.5mm)[D]
Weight
About 19.5oz (544g)
Feature Enhancements
Firmware upgrade supported (OTA)
Operating Temperature
0℃ ~ + 40℃ (32℉~ 104℉)
