Technical data

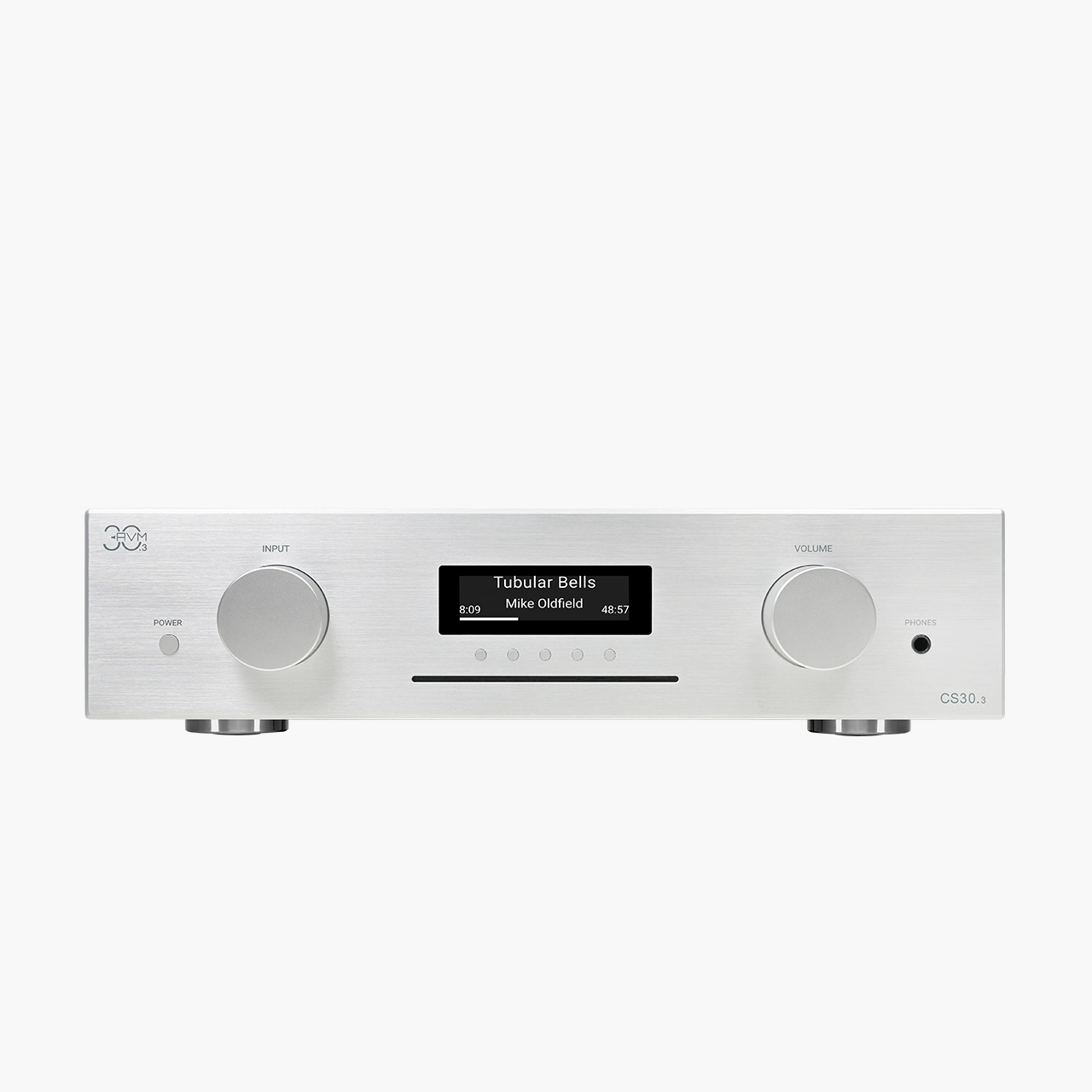

CS 30.3
|
Power amplifier (Only AS and CS 30.3) |
|
| Gain factor | 30 |
| Distortion factor | < 0.005% |
| Signal-to-noise ratio | > 95dB |
| Input sensitivity | 275 mV |
| Frequency response (-3dB) | < 5Hz to > 80kHz |
| Output power (1% THD, 4 Ohm, 2 Channel) | 2 x 125W |
|
Preamplifier (Pre-Out) |
|
| Input impedance | 3.4 kΩ |
| Output impedance | 470 Ω |
| Gain factor | 1 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Frequency response (-3dB) | < 5Hz to > 80kHz |
| Crosstalk attenuation (channels) | > 95dB |
| Crosstalk attenuation (inputs) | > 85dB |
| Input headroom (1% THD) | 3.5 V |
| Output headroom (1% THD) | 3V |
|
Preamplifier (Line-Out) |
|
| Output impedance | 47 Ω |
| Gain factor | 1 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Output headroom (1% THD) | 3.5 V |
|
Preamplifier (Headphone-Out) |
|
| Output impedance | 80 Ω |
| Gain factor | 4 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Output headroom (1% THD) | 4.5 V |
|
Preamplifier (Phono) |
|
| RIAA equalization | < 0.2dB |
| Gain MM | 40dB |
| Signal-to-noise ratio MM | > 83dB(A) |
| Gain MC | 60dB |
| Signal-to-noise ratio MC | > 74dB(A) |
| Input headroom MM (1% THD) | 30 mV |
| Input headroom MC (1% THD) | 3 mV |
|
CD-Player (only CS 30.3) |
|
| Playable formats | CD Audio; CDR (according to Red-Book standard) |
| Frequency response CD | < 20 – 20 kHz |
|
Network |
|
| LAN connection (hot-plugging capable) | 100Mbit/s |
| Supported WLAN/WiFi standards | 2.4 / 5 GHz 802.11a/b/g/n/ac |
| Number of antennas | 2 |
| WPS | yes |
|
Streaming |
|
| Max. sampling rates | DSD256, 32Bit/384kHz PCM |
| Streaming services | AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio |
| Supported file formats | WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF |
|
Bluetooth |
|
| Bluetooth standard | 5.0 LE |
| Supported Bluetooth profiles | AVRCP 1.5 AD2P |
|
USB Input (Rear) |
|
| USB standard | USB 2.0 |
| Max. current | 500 mA |
| Supported formats | FAT16, FAT 32, NTFS |
| WARNING: | The USB input is exclusively for hard drives and USB sticks! |
|
Digital inputs (S/P-DIF/Coaxial) |
|
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Deemphasis (OPTO) | Yes, automatic |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Min. signal level [Vpp] at 195kHz (COAX) | > 150 mVpp |
| Input impedance (COAX) | 75 Ω |
| Deemphasis (OPTO) | Yes, automatic |
| Max. sampling/bit rate (ARC) | 192 kHz / 24 Bit |
| Input impedance | 100 Ω |
| NOTE: | When using digital inputs |
|
Digital outputs (S/P-DIF/Coaxial) |
|
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Output impedance (COAX) | 75 Ω |
| NOTE: | When using digital outputs |
|
Power consumption (AS/CS 30.3) |
|
| Standby | < 0.5 Watt |
| Extended standby (network connection) | < 2 Watt |
| Idle | < 16 Watt |
| Fuse used | T 3.15A H |
|
Power consumption (PAS 30.3) |
|
| Standby | < 0.5 Watt |
| Extended standby (network connection) | < 2 Watt |
| Idle | < 16 Watt |
| Fuse used | T 3.15A H |
|
General |
|
| Weight (AS/CS 30.3) | 6.9 kg |
| Weight (PAS 30.3) | 6.7 kg |
| Dimensions (WxHxD) (AS/CS 30.3) | 430 x 115 x 360 |
| Dimensions (WxHxD) (PAS 30.3) | 430 x 115 x 320 |
| Warranty | 2 years (+2 years with online registration*) |
| *Warranty periods may vary in different distribution countries. | |
