Description

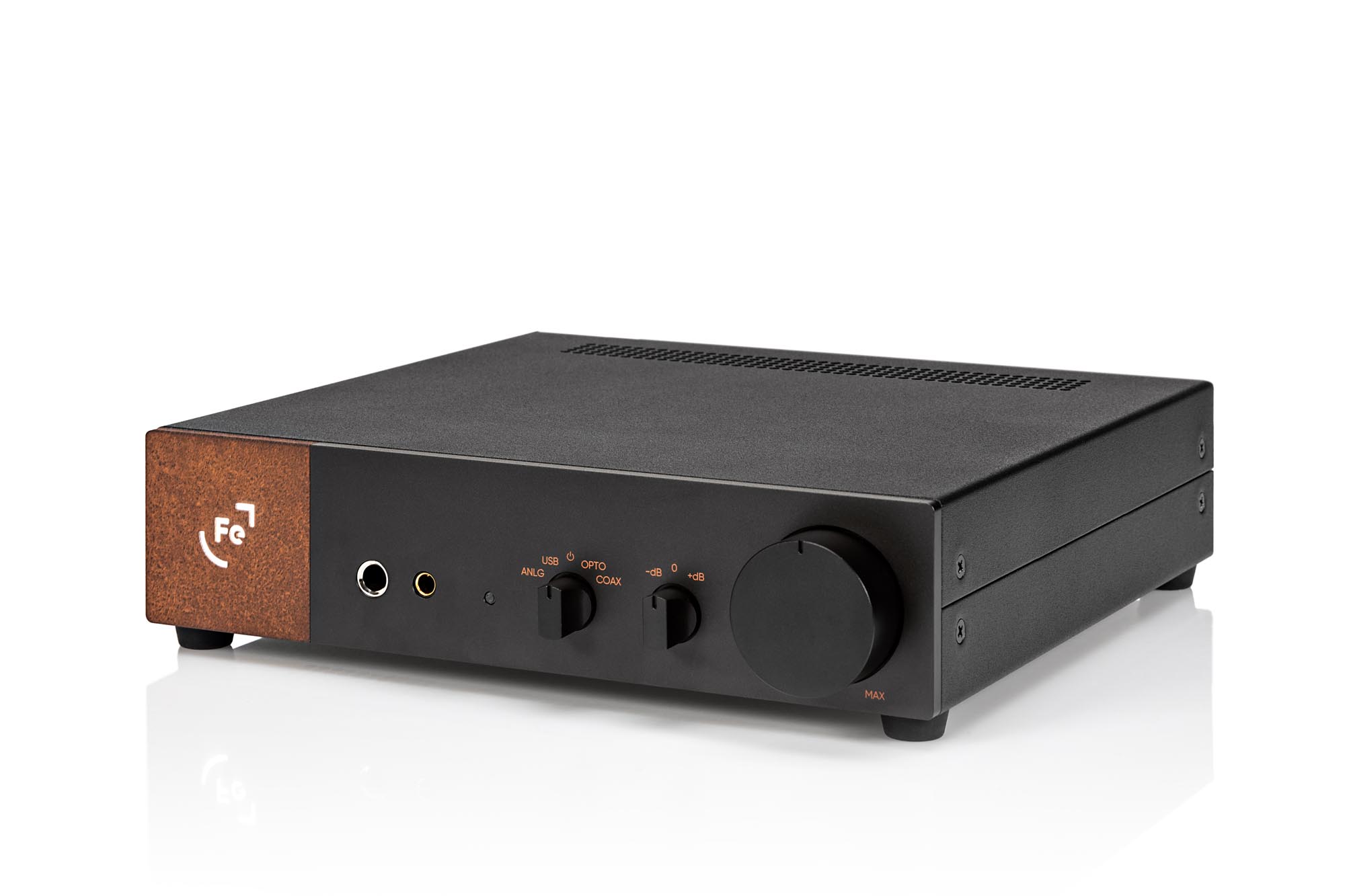

ERCO fully balanced headphone DAC/AMP
Proprietary IC power amp design
Proprietary optimised-for-audio digital inputs
Proprietary optimised MQA rendering and decoding for ARM chip
Proprietary 4-pin Ferrum connector for HYPSOS
Balanced 4,4mm jack and unbalanced 6,35mm jack headphone outputs

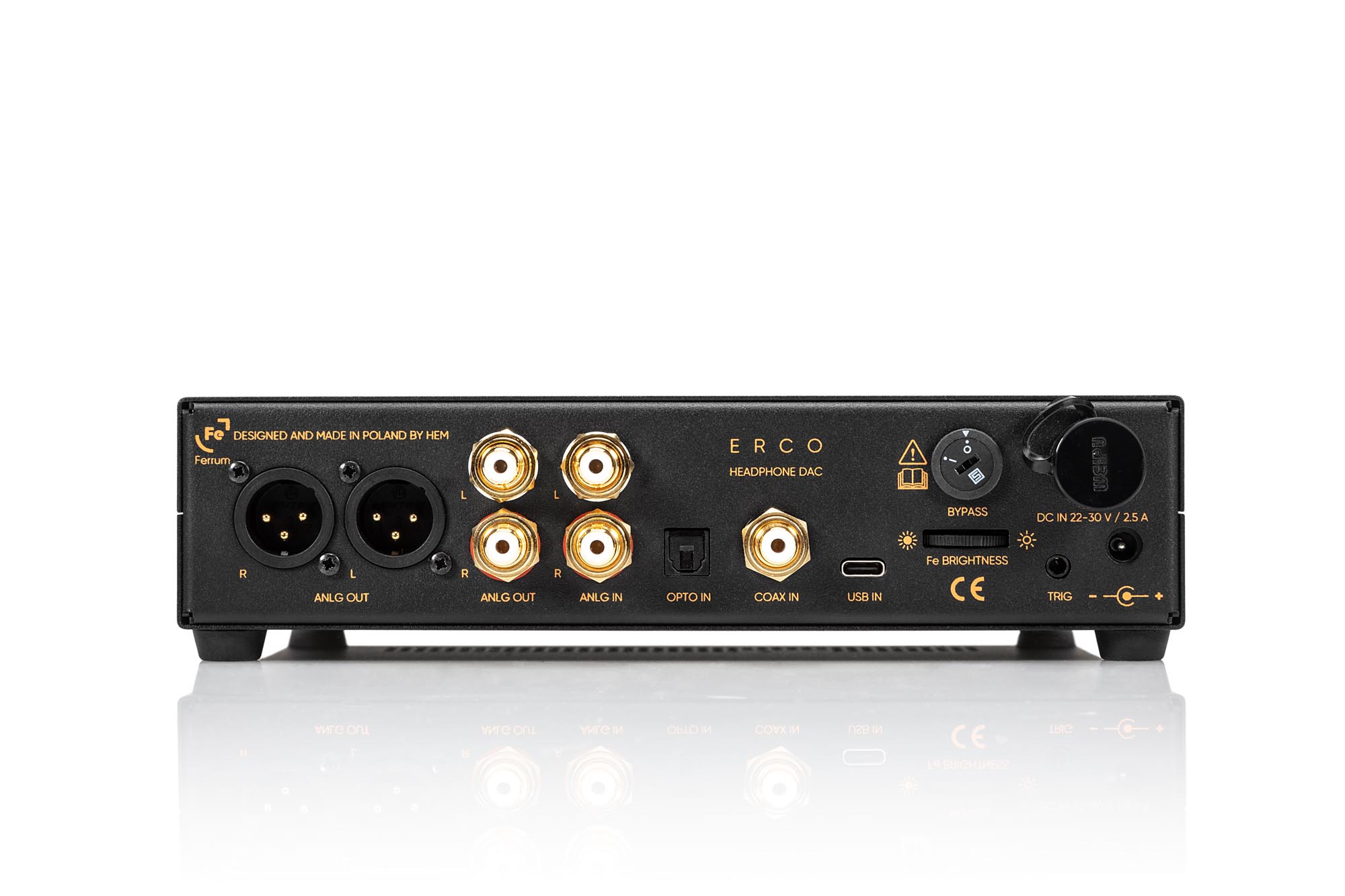

Balanced XLR and unbalanced RCA line outputs
Like a top chef who uses his ingredients freshly and grown from his own garden, we integrated parts of the awarded HYPSOS technology and lend some of OOR’s magic to lay the first bricks for ERCO. Then we proceeded to add our culminated 20 years’ worth of experience in making DA converters. And man, did we pull it off. We managed to get the best out of our two winners and put it in our new sibling, adding awesome DA conversion to the mix.
Clearing the path for high end audio
Perfect mix of flagship Ferrum technology combined with high grade in house developed Digital to Analog conversion. Choose from three digital and one analog input.
Proprietary Technology
Industry leading technology is applied. All digital ports are optimised for audio, MQA decoding and rendering is optimised for use with internal ARM chip.
Suited for high end personal audio
Connect your favourite headphones to the balanced 4,4mm jack or unbalanced 6,35mm headphone jack outputs or powered loudspeakers on your desktop to the XLR or RCA outputs to perform to their max.
Truly Balanced
The signal path is truly balanced from early D/A stage and becomes truly balanced using the RCA inputs.
Discrete/IC hybrid design
Ultra-wideband ICs fine tuned for audio use to achieve the best possible analog quality.
Enhanced transparency
The whole design remains focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.
Ease of use

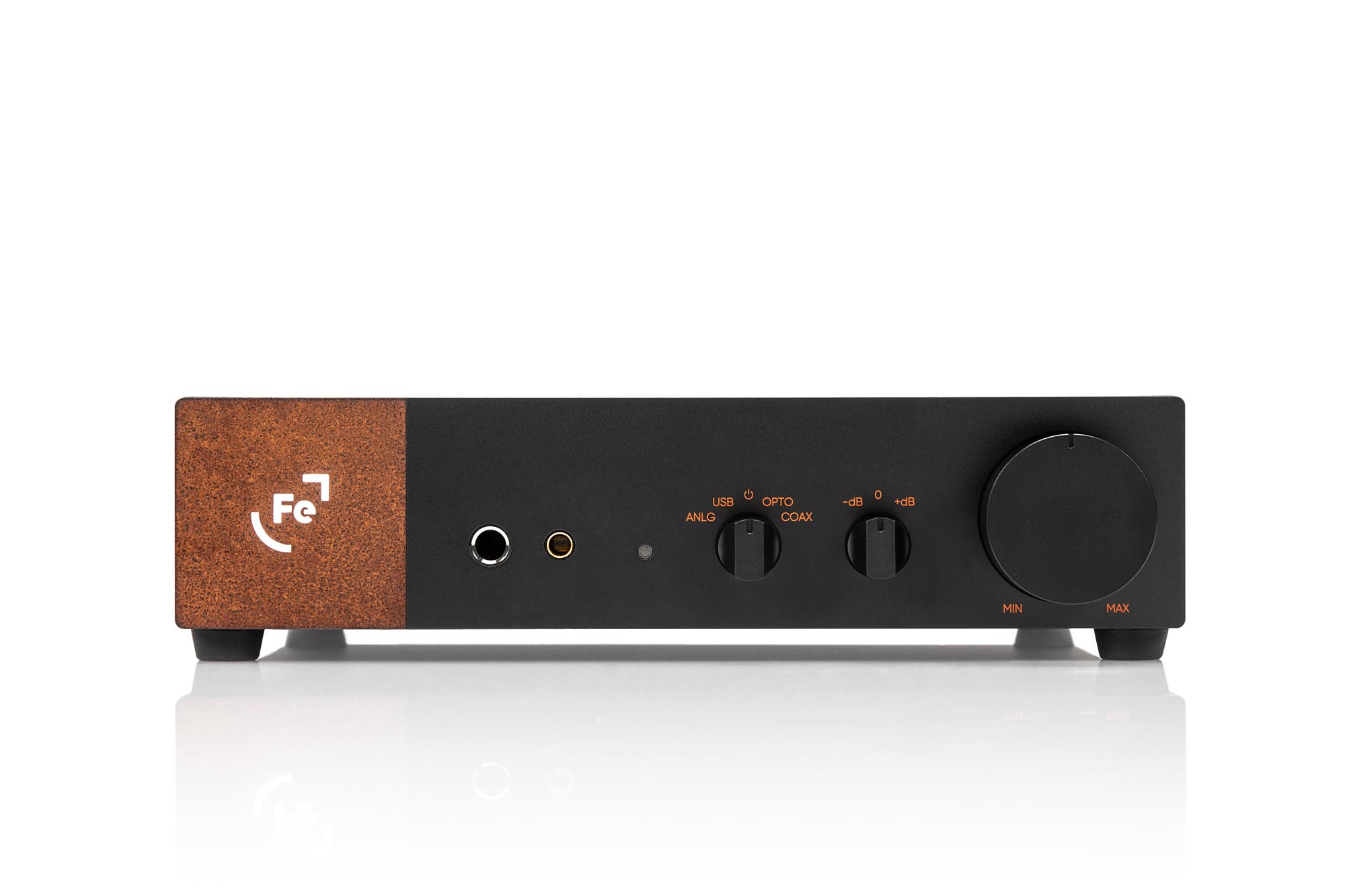

Hassle free operation. Only three knobs on the front panel to control the most important settings.
Ferrum Power Link
ERCO performs very, very good right out of the box. But ERCO is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with ERCO.
Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
Operation: fully balanced, proprietary IC power amp
Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
Analog inputs: RCA (Consumer level; Pro option with future software update)
Digital inputs: USB-C (MQA, up to PCM 32-bit/384 kHz, DSD256, DoP128); S/PDIF coaxial (MQA, up to PCM 24-bit/192 kHz, DoP64); S/PDIF optical (MQA, up to PCM 24-bit/96 kHz guaranteed, should work up to PCM 24-bit/192 kHz and DoP64 – depends of user’s optical cable and transmitter)
DAC chip: ESS Sabre ES9028PRO
PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz
DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 MHz
MQA: decoder and renderer (USB, OPTO and COAX inputs)
DAC resolution: PCM up to 384k@32bit; DSD up to 256 (11.2 MHz / 12.2 MHz)
Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
Line outputs: balanced XLR; unbalanced RCA (both Consumer level; Pro with future software update)
Volume control: analogue with bypass option (bypass for line outputs only)
Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB); 10 Hz – > 200 kHz (+/- 1 dB)
Output power unbalanced: 300 mW into 300 Ω; 1.7 W into 50 Ω
Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
Dynamic range analog: 130 dB (A-weighted)
Dynamic range digital: 120 dB (A-weighted)
Input impedance: 47 kΩ
Output impedance unbalanced: 22 Ω on pre-amp
Output impedance balanced: 44 Ω on pre-amp
Output impedance Headphones: < 0.3 Ω
Power consumption: idle <15 W
Power adapter: 100-240 VAC to 22-30 VDC
Dimensions (W x D x H): 21.7 cm x 20.6 cm x 5 cm / 8.6” x 8.1” x 2.0”
Weight: 1.8 kg / 3.97 lbs
