Description
![](https://snext-final.com/files/topics/508_ext_01_en_0.jpg?v=1509499464)
D8000
AFDS (Air Film Damping System)
![](https://snext-final.com/files/topics/508_ext_04_en_5.jpg?v=1561019460)
Life style
2019, Japan
![](https://snext-final.com/files/topics/508_ext_04_en_2.jpg?v=1549421556)
life style
2018, Japan
![](https://snext-final.com/files/topics/508_ext_04_en_0.jpg?v=1549421556)
WRITER’S CHOICE
2018
![](https://snext-final.com/files/topics/508_ext_04_en_3.jpg?v=1545014633)
BEST PRODUCT 2018
2018, Poland
![](https://snext-final.com/files/topics/508_ext_04_en_4.jpg?v=1527487421)
Grand Prize
2018, Japan
![](https://snext-final.com/files/topics/508_ext_04_en_1.jpg?v=1527487421)
Gold Prize
2018, Japan
and the volume and open feel bass tones of dynamic models.
With conventional planar magnetic models, amplitude is an increasing low range, and since the diaphragm comes into contact with magnets, it was necessary to raise the frequency of bass tones to a level that the driver unit can reproduce. To make up for the lack of bass tones, the inside of the earpads have been tightly sealed, and the front section of the diaphragm has been made a closed space.
This is the same principle as earphones with sealed earpieces being able to reproduce bass frequncies despite their small size. By sealing the inner earpads, it is possible to produce bass tones across low frequency bands; these become the bass tones produced within a sealed space the same as earphones.

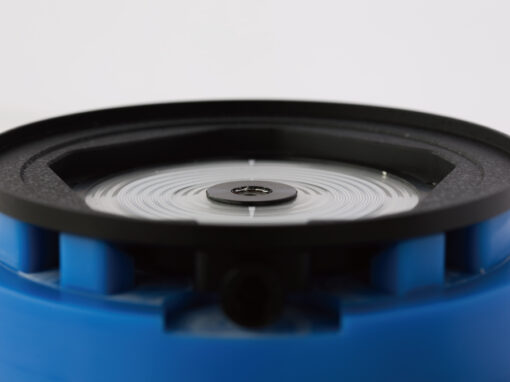

With D8000, the problem with the diaphragm coming into contact with magnets has been solved through AFDS (Air Film Damping System), and it has become possible to reduce the frequency of the bass tones
that the driver unit can reproduce. Combined with breatheable earpads, bass tone reproduction with a volume
and open sound only achievable with superior dynamic models is possible.
“Subtle high frequencies”

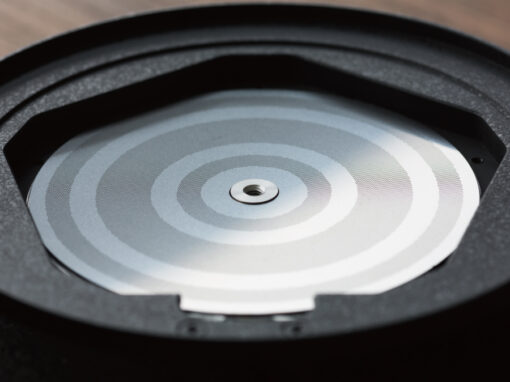

In reproducing subtle high frequencies, the lightweight nature of the diaphragm comes before anything else. Compared to other dynamic models with the same diameter, D8000’s diaphragm is 1/3 lighter. A super thin aluminum coil has been etched on the extremely lightweight film diaphragm, and as such, the adhesive essential for use between the coil and the diaphragm of dynamic models – which has a very negative effect
on sound quality – is not necessary. This is an important part, packed with know-how. With D8000, this
problem is solved theoretically, and reproduction of subtle high frequencies has been achieved.
“The combination of the planar magnetic model’s subtle high frequencies
and the dynamic model’s volume and open bass tones”
With a combination of the planar magnetic model’s subtle high frequecies and the dynamic model’s volume and open bass tones, you discover new things about music you’re used to listening to when you use D8000; they have you wanting to listen to your favorite music over and over again. With this product, you realize
that high sound quality provides the impetus for experiencing the deeper aspects of music.
new diaphragm braking technology known as AFDS – Air Film Damping System.
In doing so, the shortcoming of planar magnetic models – the low reproducibility of bass tones – was solved. This technology could be considered a reinvention of planar magnetic models.
With D8000, the problem with the diaphragm coming into contact with magnets has been solved through AFDS (Air Film Damping System), and it has become possible to reduce the frequency of the bass tones
that the driver unit can reproduce. Combined with breatheable earpads, bass tone reproduction with a volume
and open sound only achievable with superior dynamic models is possible.
![](https://snext-final.com/files/topics/508_ext_08_en_1.jpg?v=1509499464)
![](https://snext-final.com/files/topics/508_ext_09_en_1.jpg?v=1511851897)
![](https://snext-final.com/files/topics/508_ext_10_en_1.jpg?v=1509499839)
![](https://snext-final.com/files/topics/508_ext_11_en_1.jpg?v=1509499839)
![](https://snext-final.com/files/topics/508_ext_08_en_2.jpg?v=1511851897)
![](https://snext-final.com/files/topics/508_ext_09_en_2.jpg?v=1511851897)
![](https://snext-final.com/files/topics/508_ext_10_en_2.jpg?v=1509499839)

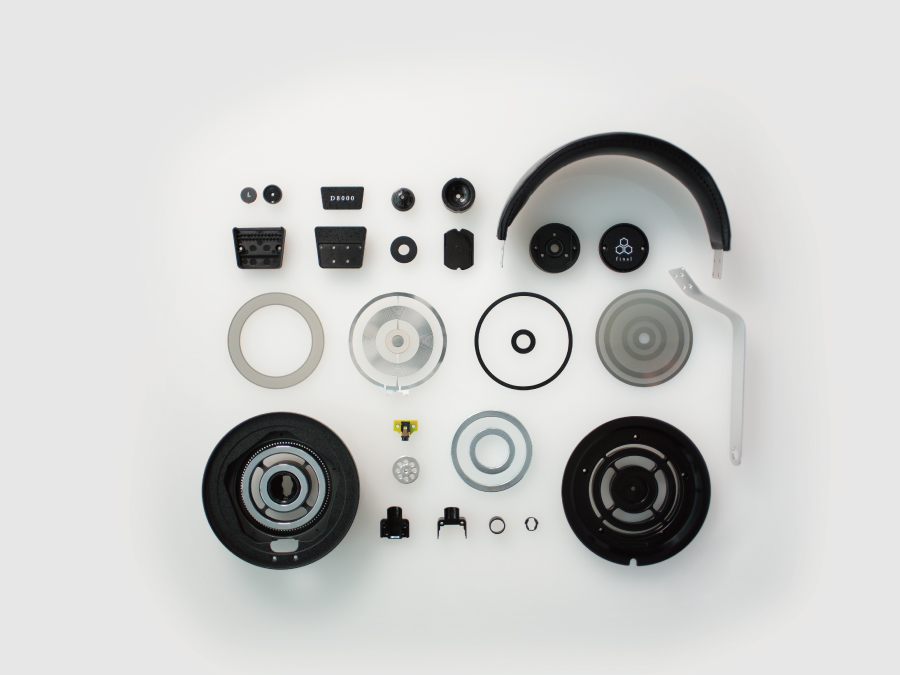

that they can be disassembled, ensuring that the product can be used for many years following purchase.
![](https://snext-final.com/files/topics/508_ext_08_en_3.jpg?v=1509499464)
![](https://snext-final.com/files/topics/508_ext_09_en_3.jpg?v=1509499464)

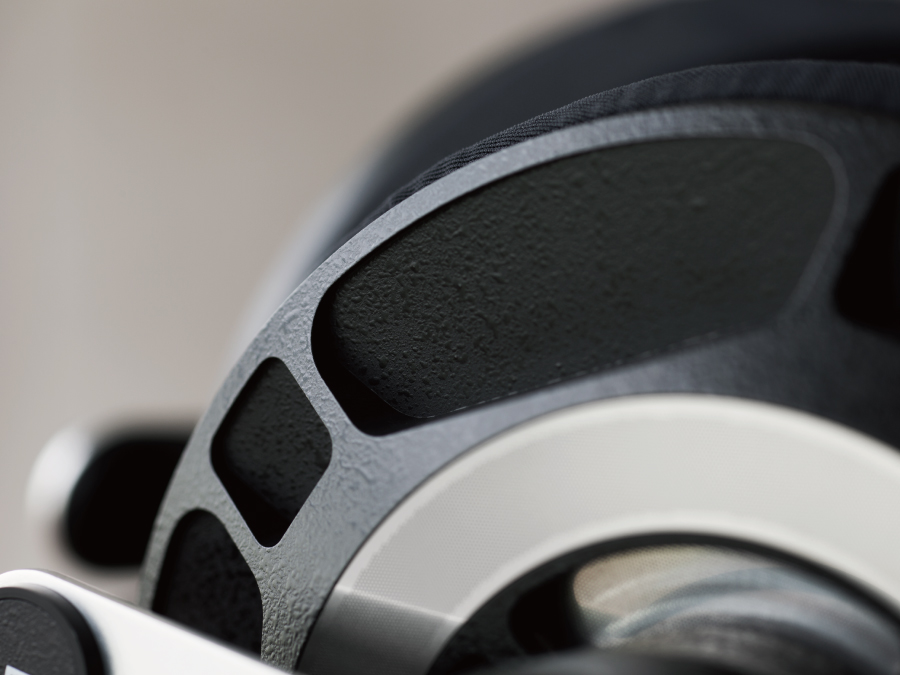

Because of this, the machined aluminum magnesium alloy housing has been machined with great precision.
By applying the kind of leather coating finish used with high-quality cameras, we’ve also taken measures against minute vibrations.
![](https://snext-final.com/files/topics/508_ext_08_en_4.jpg?v=1509499464)
that assist in the assembly process.So as to be able to fine-tune even the slightest of irregularities in jig precision during the assembly process, we design and manufacture production jigs and measurement jigs ourselves.

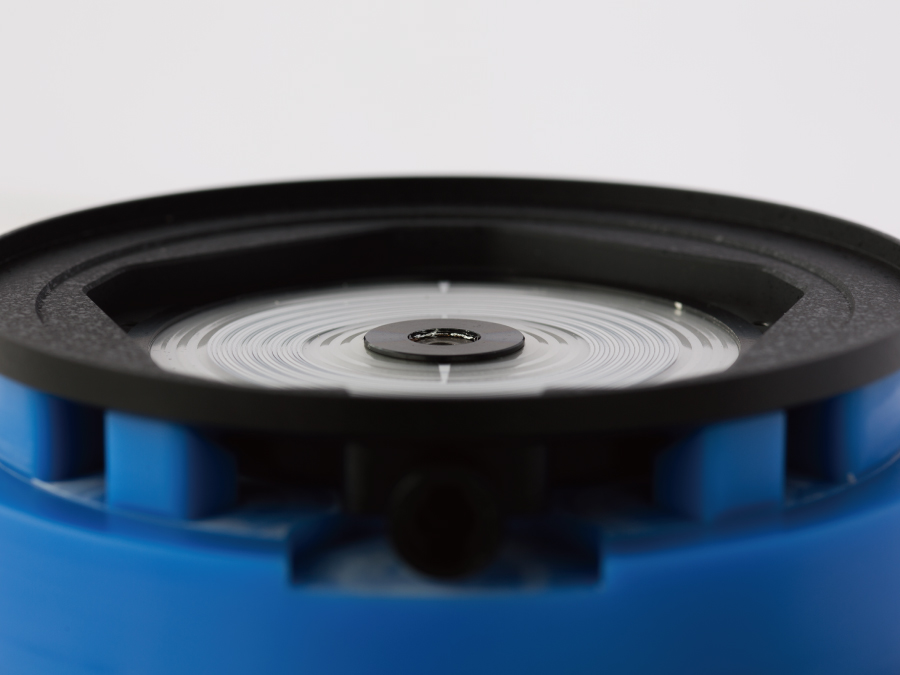

We developed manufacturing apparatus such as a diaphragm formation machine and a diaphragm tension meter in-house, specifically for the D8000.
To create truly good products, it is necessary to get to the core of the manufacturing process of parts close to the raw material. What is good about “made in Japan” is that when doing so, you can gain the cooperation of those manufacturers close to the material. By contolling everything together, from sourcing the raw materials through to the assembly of the product, we have achieved high-quality products.
![](https://snext-final.com/files/topics/508_ext_08_en_5.jpg?v=1509499464)
![](https://snext-final.com/files/topics/508_ext_09_en_5.jpg?v=1509499464)
![](https://snext-final.com/files/topics/508_ext_10_en_5.jpg?v=1509499464)

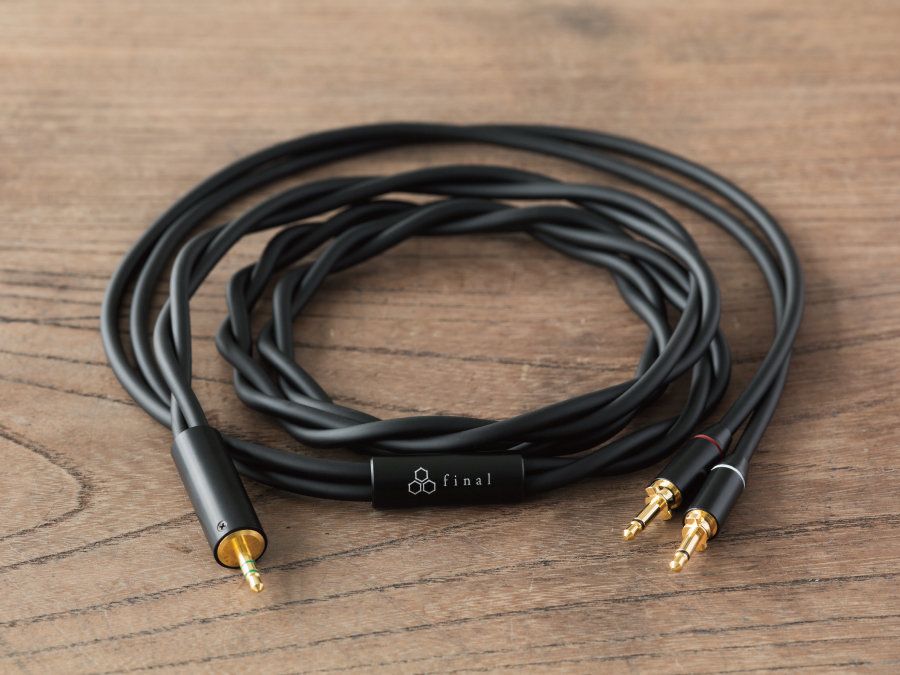

Cable length: 1.5 m
Input: 3.5 mm, 3-Pole

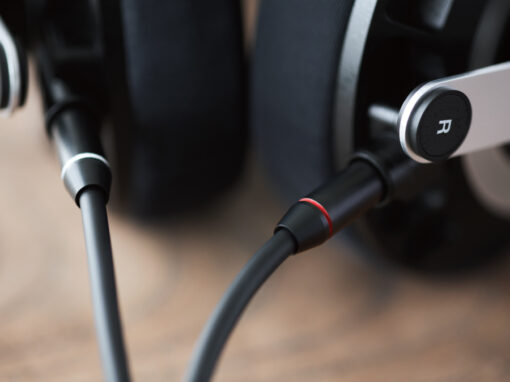

Output: 3.5 mm, 2-Pole with locking function
Compatible models: D8000/D8000 Pro Edition, SONOROUS VIII/VI/IV/III/II

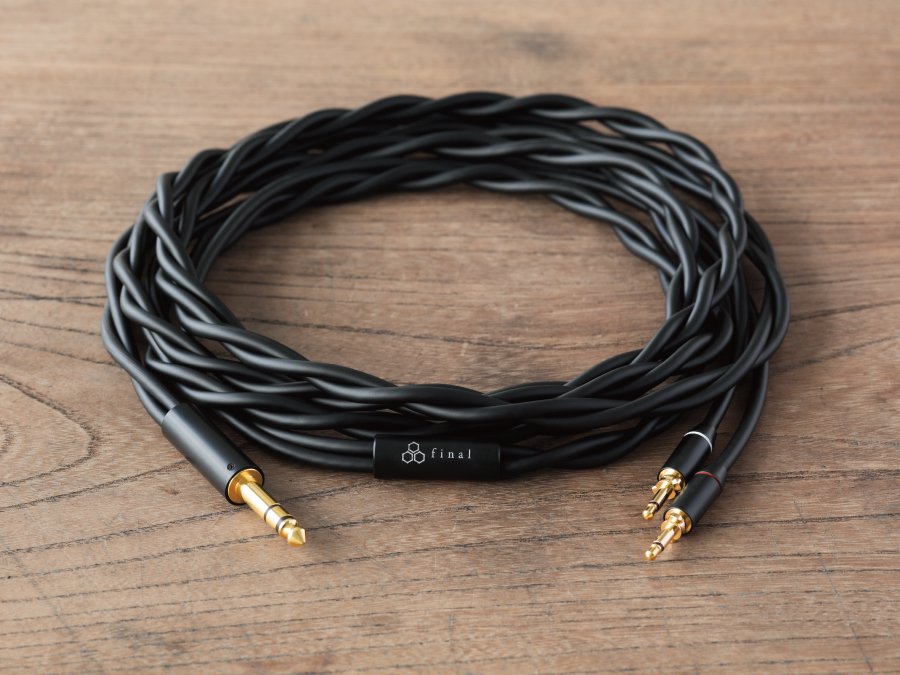

Cable length: 3 m
Input: 6.3 mm, 3-Pole
Output: 3.5 mm, 2-Pole with locking function
Compatible models: D8000/D8000 Pro Edition, SONOROUS VIII/VI/IV/III/II
![](https://snext-final.com/files/topics/508_ext_08_en_6.jpg?v=1509499839)
![](https://snext-final.com/files/topics/508_ext_08_en_7.jpg?v=1509499464)
a characteristic lengthening of reproduction frequency to bass frequencies that the driver unit originally couldn’t reproduce. However, for the high-quality expression of the natural spread of bass frequencies
the source sound originally has, it is necessary for the driver unit itself to have the ability to reproduce bass frequencies, and also to use breatheable earpads that are not tightly sealed. With all conventional planar magnetic models and many dynamic models, there is a lack in terms of bass frequencies with earpads
that are not tightly sealed.
With D8000, the reproduction band of bass frequencies has been extended through AFDS, and it has become possible to sufficiently reproduce bass frequencies even with earpads that are not sealed tightly just
with driver unit ability. The earpads that great influence sound quality have been newly developed specially
for D8000 from highly-breatheable foam and specialized fibers.
![](https://snext-final.com/files/topics/508_ext_08_en_8.jpg?v=1509499839)
![](https://snext-final.com/files/topics/508_ext_08_en_9.jpg?v=1579228731)
- Product code
- FI-D8PAL
- Housing
- Aluminum magnesium alloy
- Driver
- AFDS Planer Magnetic
- Cable
- OFC cable
- Sensitivity
- 98dB/mW
- Impedance
- 60Ω
- Weight
- 523g
- Cord length
- 1.5m/3m
