Description
HIFI ROSE says:

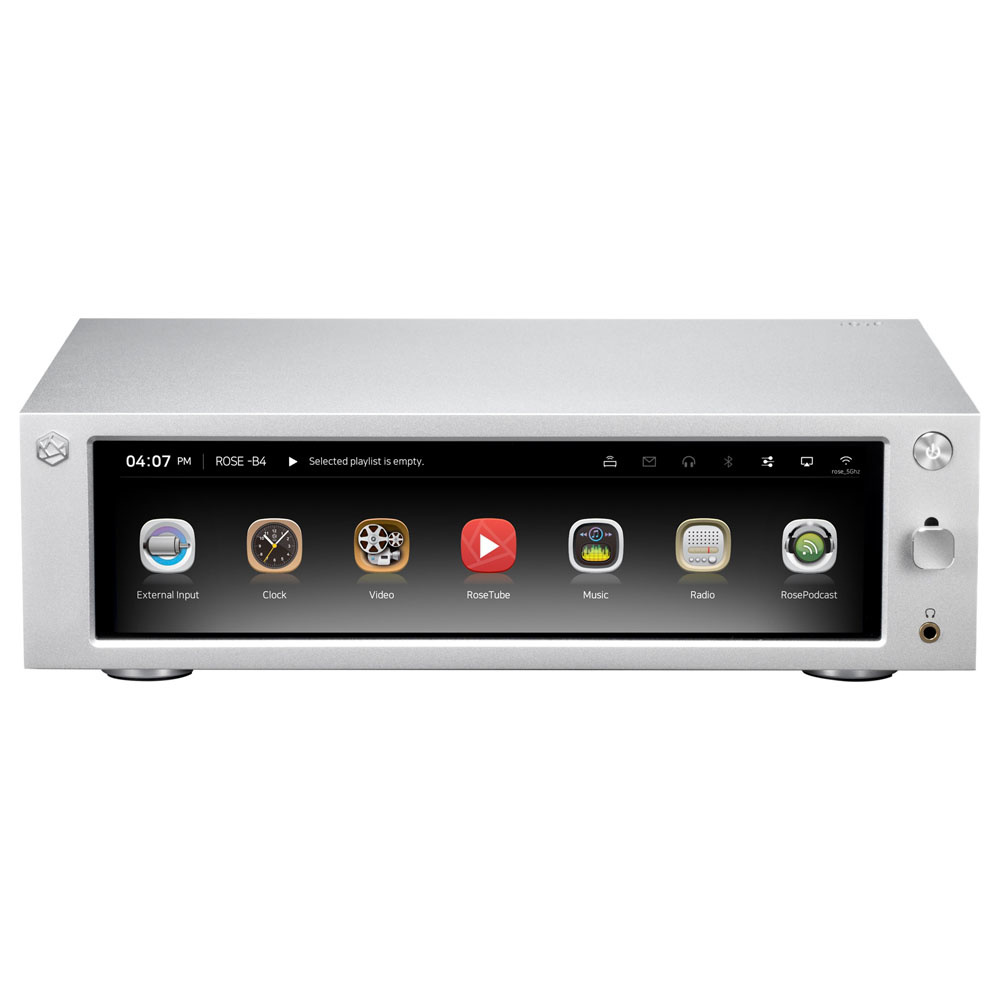

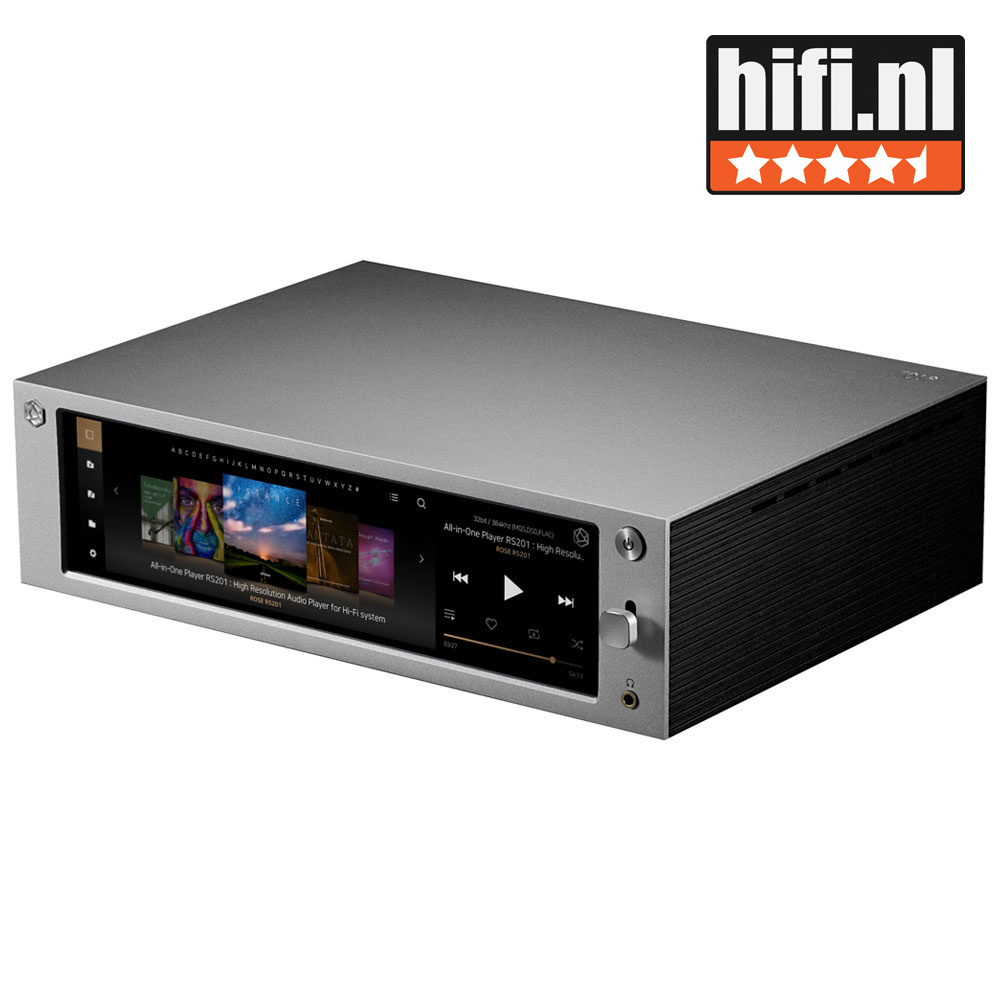

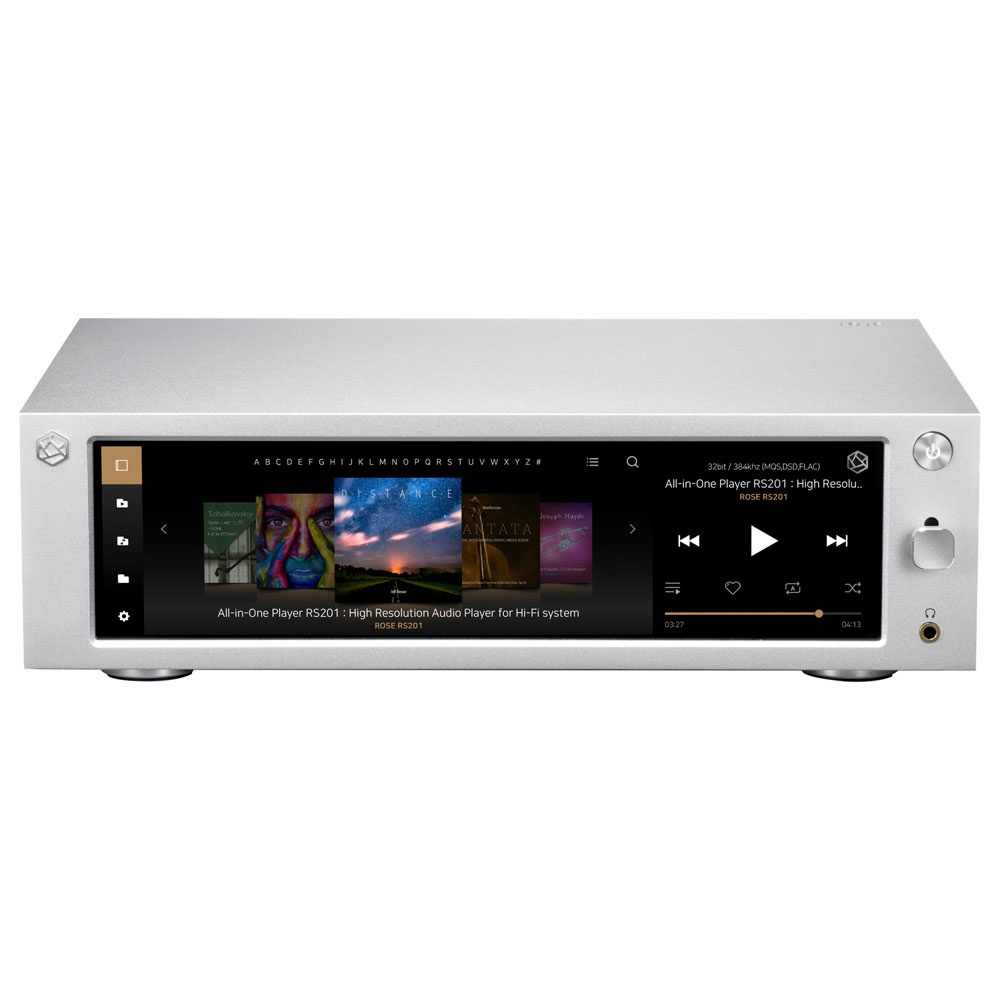

RS201E is the HiFi Network Media Player
that provides High Quality Sound,
Ultra High Pixel Stream together
with various type of Multi Media services
based on HiFi Design Expertise and ROSE platform.
Create your own Another Class Station with RS201E.
Modernized Simplification
Premium Design
Harmonized Design by upper class frame
consist of aluminum body with corner, volume knob,
power button and wide view touch screen makes
its whole shape be exceptional.
HiFi Audio & UHD Video
Multimedia Playback
Network Connection among USB. Micro SD. SSD.
PC and NAS supports latest Audio format. MPEG.
H.264. H.265. VP9
High Quality Sound
Studio Mastering Quality Sound Playback
PCM32bit/384khz, Native DSD256- 32bit/11.2MHz
supporting Latest High Resolution PCM32bit-384kHz
and Native DSD32bit-11.2MHz provide full and dynamic
sound through Reference 32bit High Performance DAC.
High Speed Driver Variation Technique and
Embedded Pure Path Ultra HD Power Amp. Provide
Super Audio Quality of Ultra Low Distortion and
stable sound quality covering whole range.
Harmonization between vacuum amp. and reference grade amp
amp. of PreAmp in 122dB SNR(-132dB THD+N)supports Studio Mastering Quality Sound.
RS201E includes MQA technology
which enables you to play back MQA audio files and streams,
delivering the sound of the original master recording.
Visit mqa.co.uk for more information.
Specifications
- OS
- Android 7.0 (Nougat)
- Design
- Size
- 278 x 202 x 76 mm
- Weight
- 2.3kg
- Finishing
- High-quality anodized aluminum front-top with modern sense
- Display
- Wide view 8.8″ multi touch screen
- Power
- Maximum output
- 100W
- Speaker impedance
- 4~16 Ω

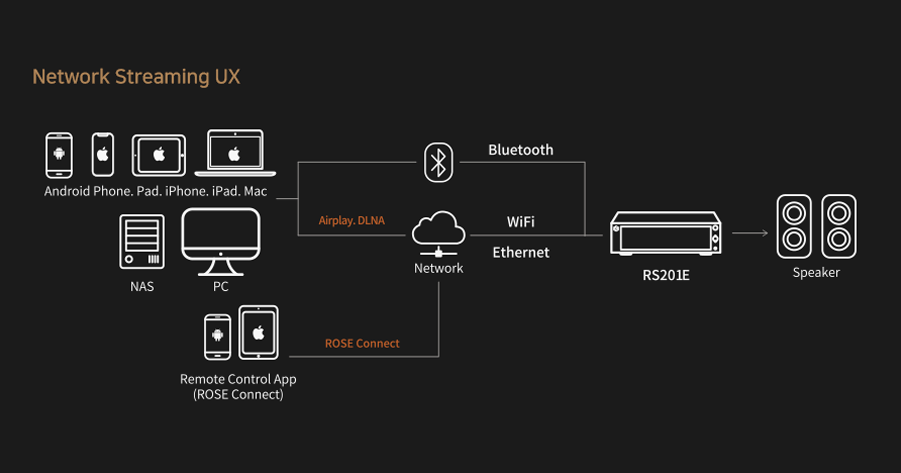

- Wireless
- Network
- Ethernet 10/100/1000 BASE-T
WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
- Bluetooth
- Bluetooth 4.0 (AD2DP SINK, AVRCP)
- Streaming
- Airplay / DLNA Service

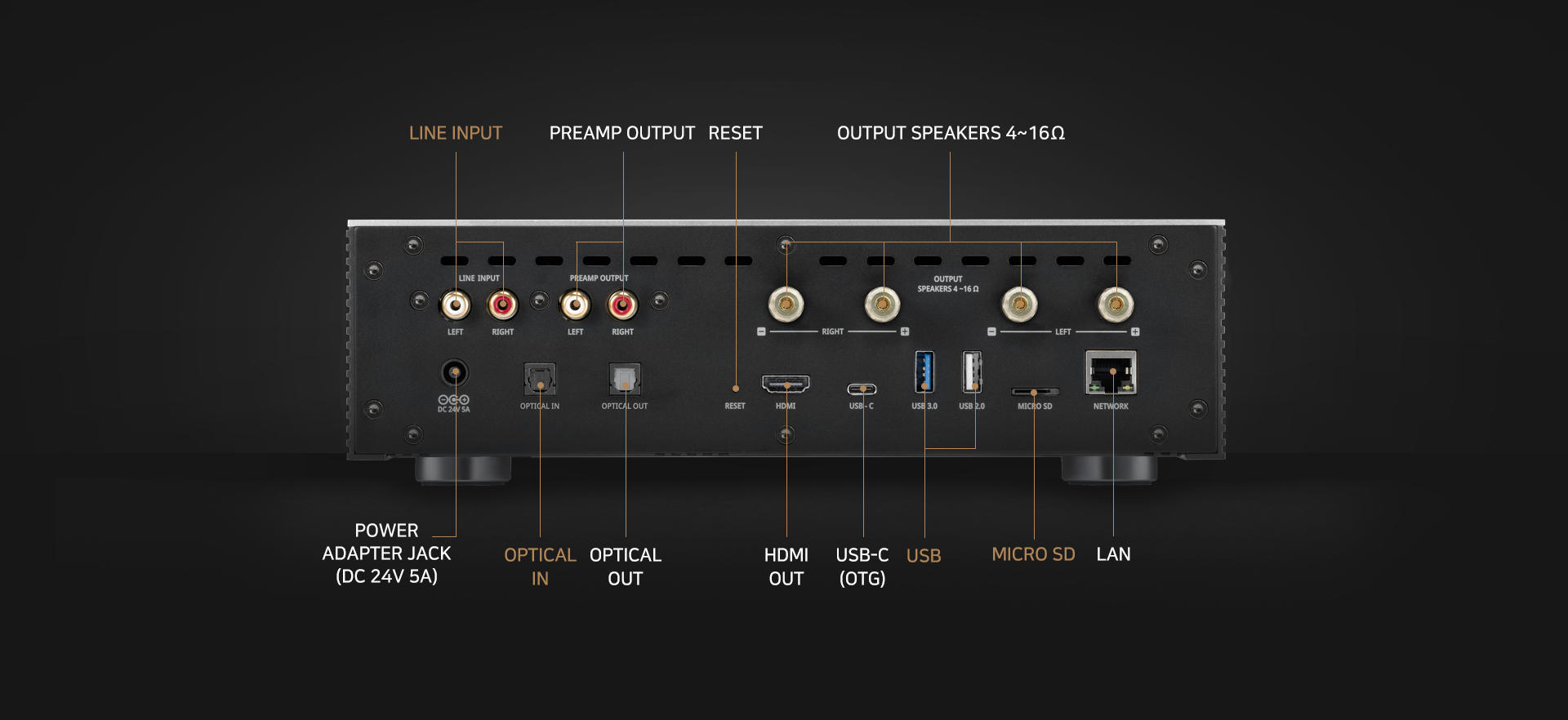

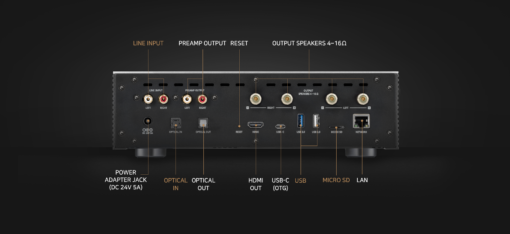

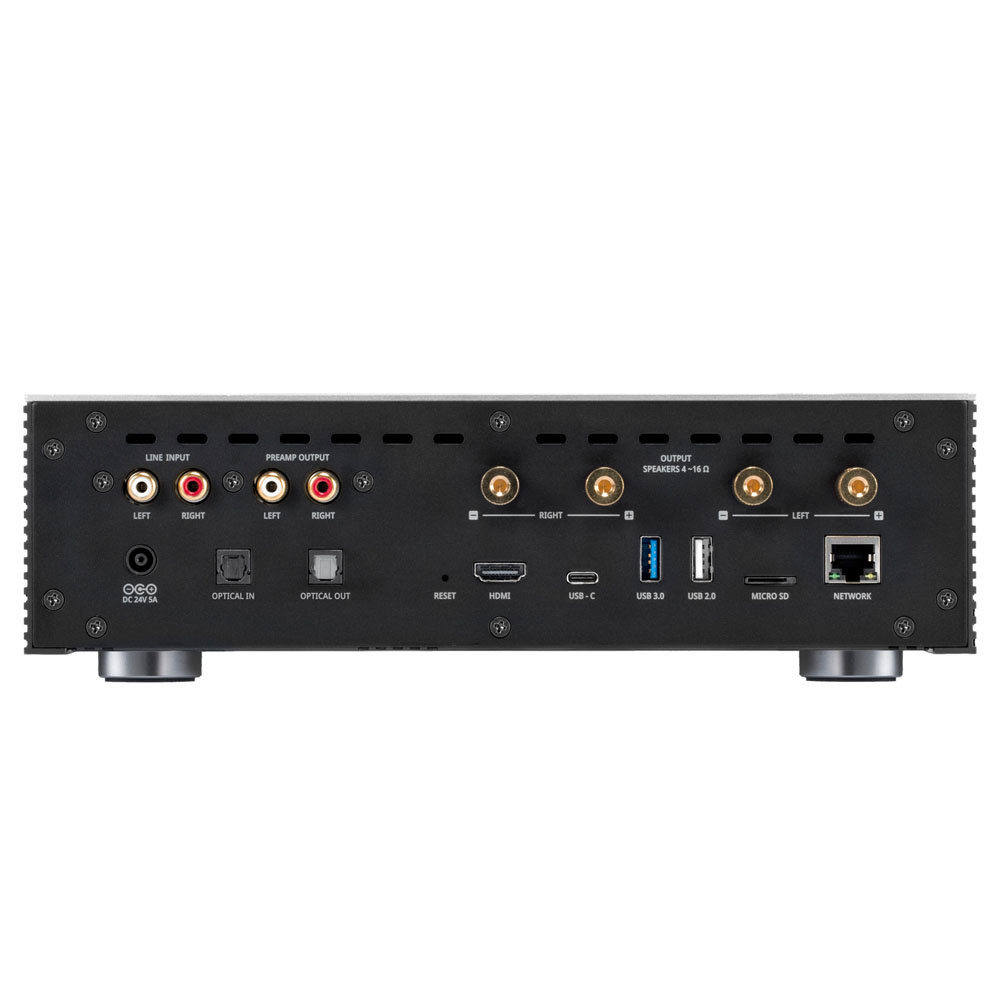

- Input, Output
- Audio input
- Connections for source devices such as CD/ DVD /Blu-ray Player
S / PDIF connections for TV, Projector, CD / DVD / Blu-ray Player

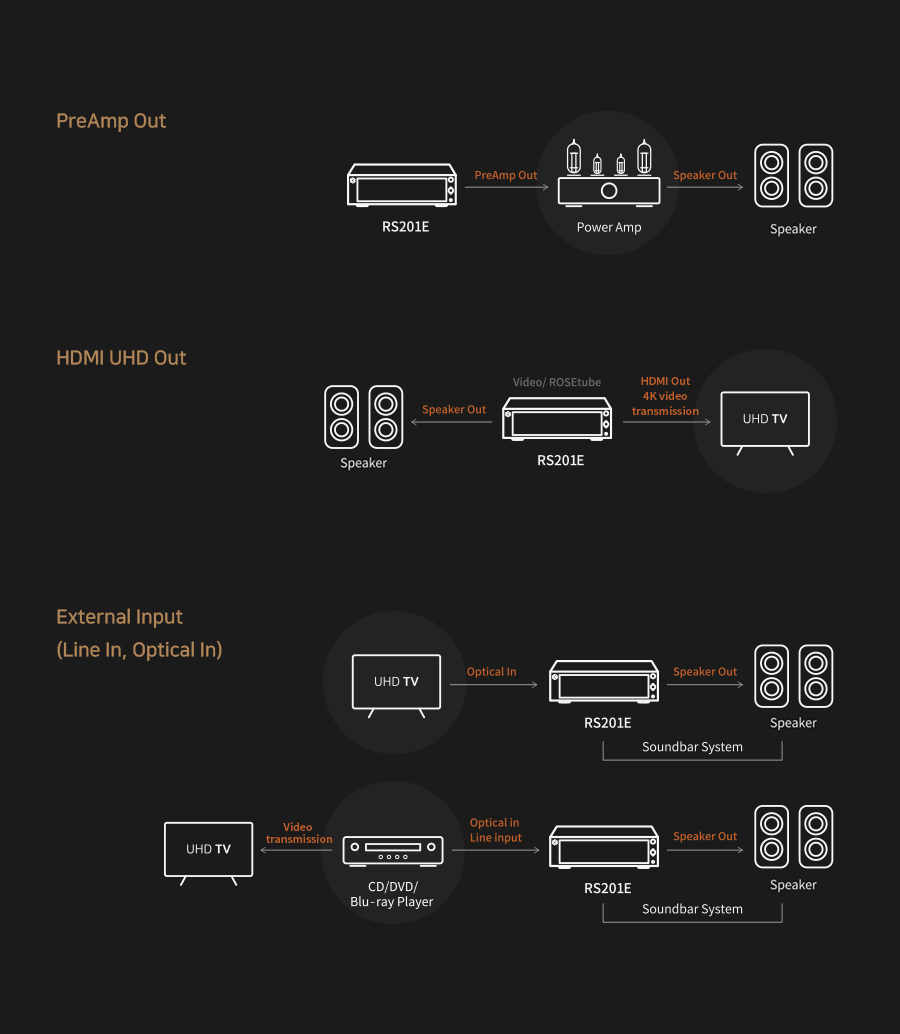

- Audio output
- Headphone Out : Connection for 3.5mm headphone
PreAmp Out : Connection for vacuum tube amplifier, reference amplifier
Speaker Out : Connection for L+/L-, R+/R- speaker
Optical Out : S / PDIF connections for sound bar
- video output
- HDMI connections for TV, Projector
- Media connection
- USB 2.0 x 1, USB3.0 x 1 (File system – NTFS/FAT32, Supported capacity – 512GB, External HDD by 4TB)
MicroSD x 1 (File system -NTFS/FAT32, Supported capacity – 512GB) SATA3.0 SSD x 1 (File system – NTFS, Supported protocol – FTP/WebDav, 4TB)
USB C type x 1 (Only for service)
- Supported codec
- Audio
- MQA, WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
PCM : 8KHz~384KHz(8/16/24/32bit per Sample)
Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
- Video
- ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 [email protected] up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
- Power
- Input power
- AC100-240V, 50/60Hz
- Output power
- DC 24V, 5.0A
- Standby power
- Standby mode<0.5W
- Update
- SW update via internet, manual update via USB
- Remote control
- Remote controller
- BT Remote controller
- Remote App
- ROSE Connect (Android, iOS)
- Accessory
- AC adpater x 1, Quick guide x 1, BT Remote controller x 1, Battery (AAA) x 2, Screw for SSD x4, Screw driver x 1
