Description
HIFI ROSE says:
Pure Sound
State-of-the-art DAC Setting
Integrated with Asahi Kasei’s flagship DAC chip AK4499EQ,
the RS150 offers low noise, low distortion, ultra-high-resolution
sound and analog rich density with proprietary processing
supporting PCM 32bit / 768KHz and Native DSD512 (22.5792Mhz).
the RS150 offers low noise, low distortion, ultra-high-resolution
sound and analog rich density with proprietary processing
supporting PCM 32bit / 768KHz and Native DSD512 (22.5792Mhz).
Analog Acoustic Sensitivities
Delivers the musical inspiration from high-quality sound
by the tuning of Acoustic engineers with thirty years of experience.
Clearly expresses the full range, from grand, and rich bass to delicate, and elegant highs.
by the tuning of Acoustic engineers with thirty years of experience.
Clearly expresses the full range, from grand, and rich bass to delicate, and elegant highs.
Linear Power System and Ideal Circuit system
Linear power supply minimizes noise inflow significantly.
Ideal circuit system eliminates electrical noise,
and creates dramatically improved sound quality without distortion
Ideal circuit system eliminates electrical noise,
and creates dramatically improved sound quality without distortion
Highly Precise Femto Clock
The highly precise Femto clock delivers superb stereoscopic,
and distortion-free sound with quiet and clear background imaging.
and distortion-free sound with quiet and clear background imaging.

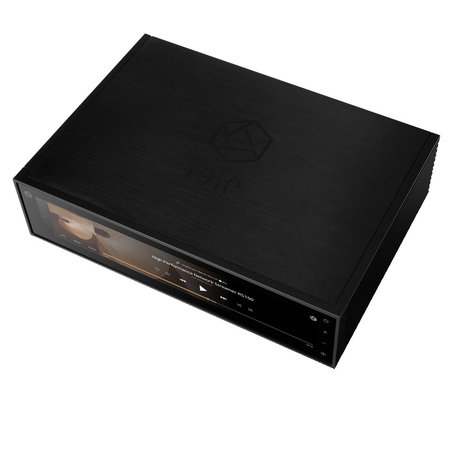

Case milled from Solid block of High Purity Aluminum
The high-purity aluminum integrated into one piece to maximize thermal efficiency.
By minimizing parts in the assembly area, vibrations that can affect sound qualities
are greatly reduced, creating a profound and ideal sense of space.
By minimizing parts in the assembly area, vibrations that can affect sound qualities
are greatly reduced, creating a profound and ideal sense of space.
MQA Certified
RS150 supports MQA full decoder technology. MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
Ultra HD 4K Video Support
Watch Local or RoseTube video files in Ultra HD 4K quality on a large display with an HDMI connection. Feel the magnificent and vivid touch of the Opera House at home now.
Advanced Control
14.9-Inch-Wide Touch Screen
Intuitive, and convenient interface through high-resolution IPS Multi-Touch panel. The front display can play album art and music videos in a wide viewing angle.

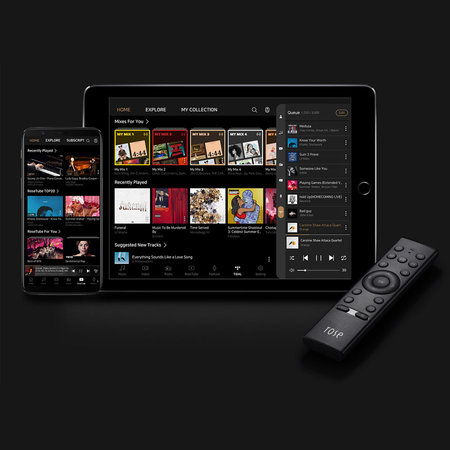

ROSE Connect Application
This intuitive and dedicated application allows users to play all music and videos from local and network sources.
Bluetooth Remote Controller
With a Bluetooth remote controller, control the device with ease.
Innovative ROSE OS
HiFi Rose OS system provides an innovative musical experience. Stream and play ultra-high-quality music, 4K high-definition video, ad-free YouTube, Podcasts, various radio stations from around the world, CD playback/Ripping, and more.

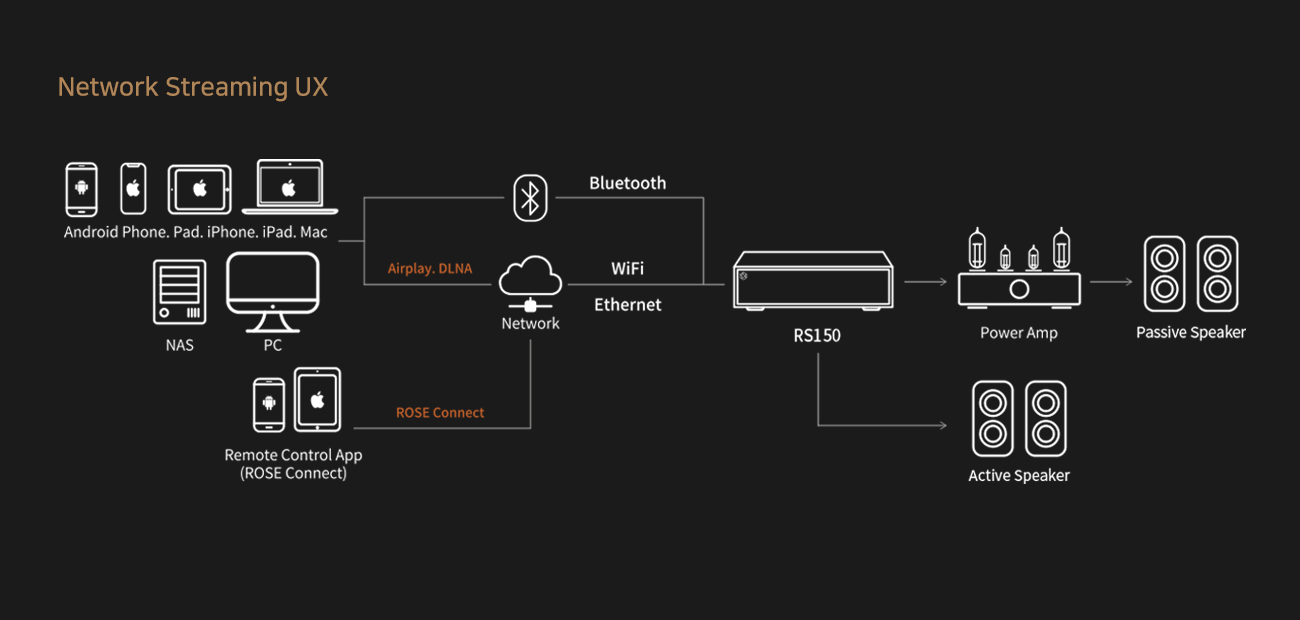

Connect Anything
Wired/Wireless Connection
Seamless streaming over the network is possible.
It supports Airplay and DLNA functions and can connected to smartphones,
computers and tablet PCs via Wi-Fi / Giga Ethernet / Bluetooth communication.
Spotify Connect / Qobuz / Tidal MQA / Roon Ready / Optional External CD / Player Radio

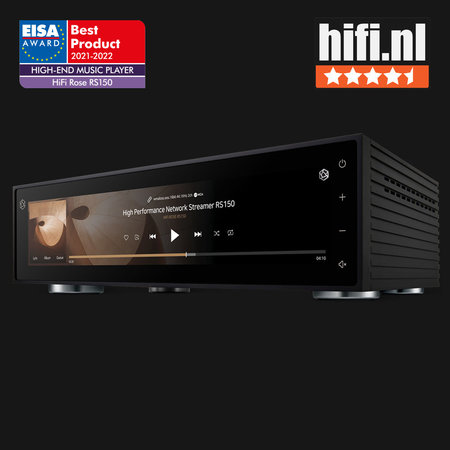

EISA Award Beste High-End Music Player 2021-2022
Specifications
| OS | Rose OS Ver 1.22.4 (based on Customized Android 7.1) | |||
| Design | ||||
| Size | 430(W) x 316(D) x 123(H) mm | |||
| Weight | 13 kg | |||
| Body | Milled from Solid Block of High Purity Aluminum, Minimizing Vibrations and Noise. | |||
| Display | 14.9-inch-Wide HD IPS Touch Screen LCD | |||
| CPU | Hexa Core CPU Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
|||
| GPU | Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11 | |||
| MEMORY | LPDDR3 4GByte | |||
|
|
|||
| DAC Chip | ESS Technology, SABRE ES9038PRO | sahi Kasei VERITA AK4499EQ | ||
| Output level | 6.5Vrms (Balanced), 2.2Vrms (Unbalanced) |
9.0Vrms (Balanced), 4.5Vrms (Unbalanced) | ||
| THD | 0.0002%(Balanced,1KHz 6.5Vrms), 0.0003%(Unbalanced,1KHz 2.2Vrms) |
0.0002%(Balanced,1KHz 9.0Vrms), 0.0003%(Unbalanced,1KHz 4.5Vrms) |
||
| THD + N | 0.0003%(Balanced, 1KHz 6.5Vrms), 0.0004%(Unbalanced,1KHz 2.2Vrms) |
0.0003%(Balanced, 1KHz 9.0Vrms), 0.0005%(Unbalanced,1KHz 4.5Vrms) |
||
| IMD | -103dB (Balanced), -103dB (Unbalanced), SMPTE 4:1, 60Hz:7kHz |
-101dB (Balanced), -100dB (Unbalanced), SMPTE 4:1, 60Hz:7kHz |
||
| Signal to Noise Ratio | 121dB (Balanced),118dB (Unbalanced), A-wt |
120dB (Balanced), 117dB (Unbalanced), A-wt |
||
| Dynamic Range | Max 132 dB (CCITT filter) | Max 132dB (CCITT filter) | ||
| Stereo Crosstalk | Max -138dB, 20-20kHz | Max -138dB, 20-20kHz | ||
| Output Frequency Response | 20Hz to 20,000(+/-0.5dB) | 20Hz to 20,000 (+/-0.5dB) | ||
| Output Impedance | 50Ω | 100Ω | ||
| Network connection | ||||
| Network | Wired : Ethernet 10/100/1000 BASE-T Wireless : External USB type WiFi Dongle supported |
|||
| Bluetooth | BT : External USB type BT WiFi Dongle supported. ( A2DP Sink, AVRCP v1.3 ) * A few types of WiFi, BT dongle is not supported. |
|||
| Audio service | ||||
| Streaming | Airplay / DLNA / Roon Ready / MQA Full Decoder | |||
| Music service | TIDAL / Internet Radio / Podcast | |||

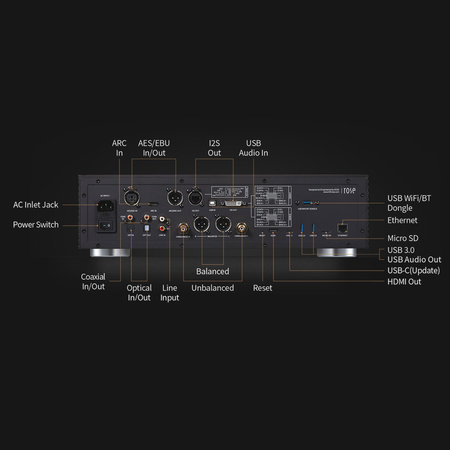

| Input, Output | ||||
| Audio input | Optical x 1, COAX x 1, Line-IN x 1, AES/EBU x 1, HDMI ARC x 1, USB DAC x 1 | |||
| Audio output | Optical x 1, COAX x 1, Pre-OUT (Balanced x 1, Unbalanced x 1), I2S-DVI x 1,I2S-RJ45 x 1, AES/EBU x 1 | |||
| Video output | HDMI 2.0x 1 ( up to 3840 x 2160 / 60Hz ) | |||
| Media connection | File system : SMBv1, SMBv2 /FTP / WebDav / NTFS / eXfat / FAT32 Storage interface : USB3.0 x 2, MicroSD x 1, SSD x 1 |
|||
| Supported codec | ||||
| Audio | WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A PCM : 8KHz~384KHz(8/16/24/32bit per Sample) Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.5792Mhz) |
|||
| Video | ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC H.264/AVC, Base/Main/High/High10 [email protected] up to 4Kx2K@30fps H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps |
|||
| Power | Input Voltage : AC100-230V 50/60Hz Input Power : 55W Fuse : T3.0AL/250V |
|||
| Update | SW update via internet, USB OTA, ROSE Store | |||
| Remote control | ||||
| Remote controller | Bluetooth Remote controller | |||
| Remote App | ROSE Connect (Android, iOS) / Google PlayStore, App Store | |||
| Accessory | Power cord x 1, Bluetooth Remote controller x 1 (AAA battery x 2), Simple Guide x 1, SSD screw x 4, Bluetooth/WiFi dongle x 1 (sold separately) |
|||
