Pathos Acousitcs – InPoL Ear

5.0906.380

Description

InPoL EAR

InPol Ear is an integrated headphone amplifier in pure Class A, with a fully balanced latest generation double InPol.

The twin match valve/headphone meets the highest quality of the sound, entrusted by the tubes with a low power demand, typical of the headphones.

Listening by headphones through this amplifier means to start a journey to search for sound fullness conveyed by InPol, which also grants a great high-end extent and a strong nature, thanks to two balanced outputs (10 W@ 16 Ohm) and 1 unbalanced output (6 W@ 16 Ohm).
Thanks to the features of its circuits, InPol Ear is an excellent fully balanced tubes pre-amplifier.

Thanks to the (optional) HiDac Mk2 converter, music lovers who want the best from their digital sources will find their demands fully met.

Ideal for headphone listening

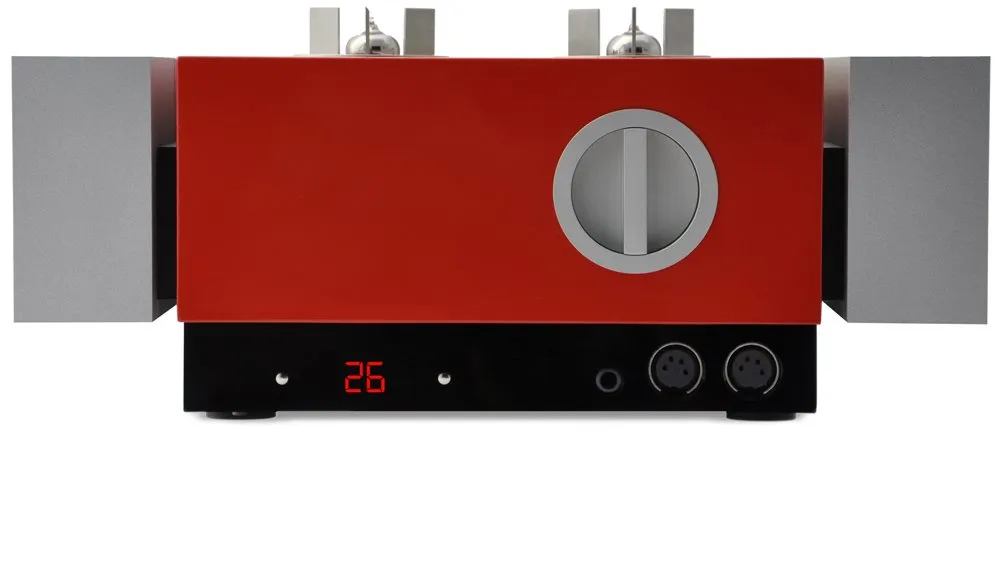

Compact, good looking and powerful: InPol Ear is an ideal amplifier for headphones fans; chassis middle part is finely crafted, while on the sides are shown aluminium heatsinks, shaped to form maker’s logo and serve to highlight the carefully protected tubes, placed in the centre of the chassis.

Completely handmade in Italy with high quality components, this amplifier is going to be a high design product.
It is available in different colours and customized finishes, satisfying the most demanding requests from the market.

Thanks to the (optional) HiDac Mk2 converter, InPoL Ear will be able to receive all your music from your PC by USB or from a digital source by S/PDIF.

Sonic personality in pure class A

InPoL (Inseguitore Pompa Lineare – Linear Pump Follower) is a system patented by Pathos Acoustics which has enjoyed great success and won many awards.

Inpol devices have a special sonic personality obtainable only by means of this particular circuit design – fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.

This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPoL.

InPoL Ear



Type Reference stereo
integrated amplifier for
headphone Pure class A double INPOL
technlogy -fully balanced
and preamplifier
Output power
Impedance Unbalanced Balanced
32 Ω 3W 10W
50 Ω 1,9W 6,4W
120 Ω 800mW 2,7W
300 Ω 320mW 1W
600 Ω 160mW 533mW
Output impedance Balanced 0,9 Ohm
Unbalanced 0,45 Ohm
Frequency response 2Hz – 200KHz ± 0.5db
Input sensitivity 3,5 VRMS
Input impedance 100KOhm
Output polarity Selectable by remote control
Volume regulator 2 x Burr Brown PGA2310 (180 steps 0,5dB)
THD 0,1% @ 11W
S/N Ratio > 100dB
Max input voltage 4,4VRMS
Max output voltage Balanced 20VRMS
Unbalanced 10VRMS
Preamplifier
Gain 9db
Phase inverting/non-inverting switch
Outputs 1 balanced XLR
1 unbalanced RCA

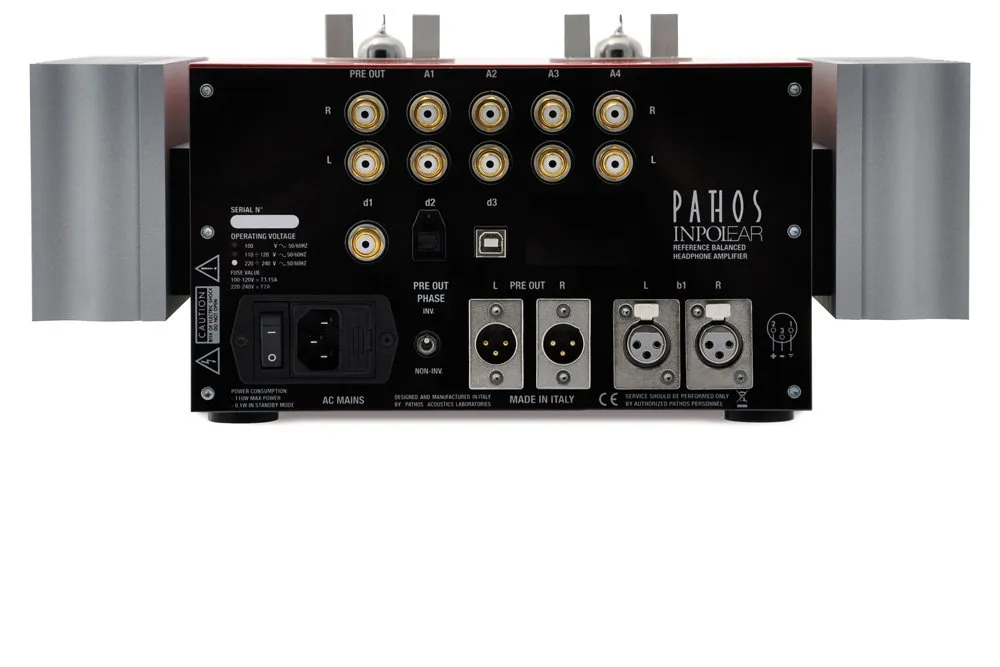

Connections
Analog inputs 1 Balanced XRL line, 4 unbalanced RCA line
Digital inputs Installation of (optional) HiDac Mk2 board is
required to enable these inputs
1 USB port type “B” for PC, 1 SPDIF coaxial, 1 SPDIF optical
Outputs 1 Pre out stereo line RCA (pre-output phase can be selected)
1 Pre out stereo line Balanced XLR
1 Connector for jack headphone 6,3mm
2 Connector for 4 pin XRL
Power consumption 110W
Dimensions Amplifier 370mm (D) x 280mm (W) x 180mm (H)
Weight 12,5Kg

Additional information

Colour

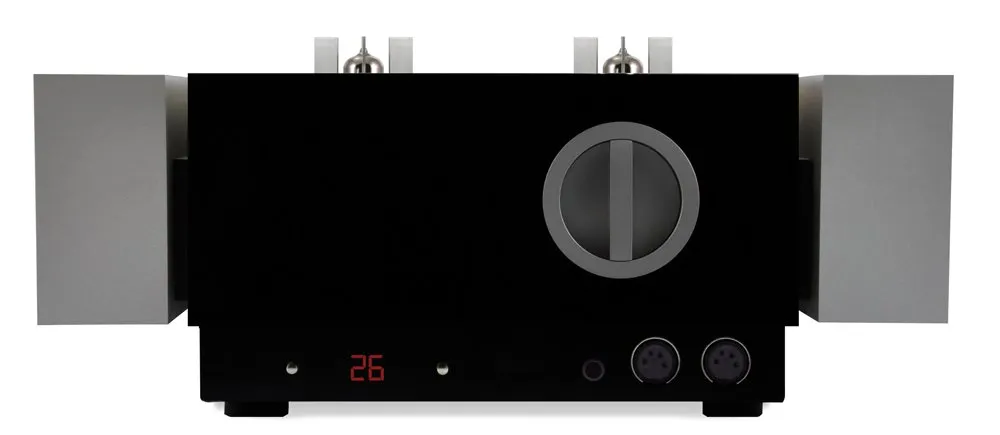

Black Metallic, lacquered white, black, red, zebrano

Incl. HiDac Mk2

No, Yes

Brand

Pathos
