Description
HSA-1b (b for even better!)
Headphone
& Speaker Amplifier
Direct Drive Amplifier For RAAL-requisite True-Ribbon Earfield Headphones and Regular Dynamic and Planar Magnetic Headphones!
- Uncompromised Fidelity
- Superbly Synergistic to the SR1a
- Can Drive SR1a AND regular dynamic and planar magnetic Headphone (not as pictured below)
- Output Switchable between Headphones or Speakers
- 120V or 240V Voltage Select
- Unbalanced, Single-Ended RCA Inputs
- True-Balanced, XLR Inputs
- Direct Drive for True-Ribbon Headphones and Conventional Speakers

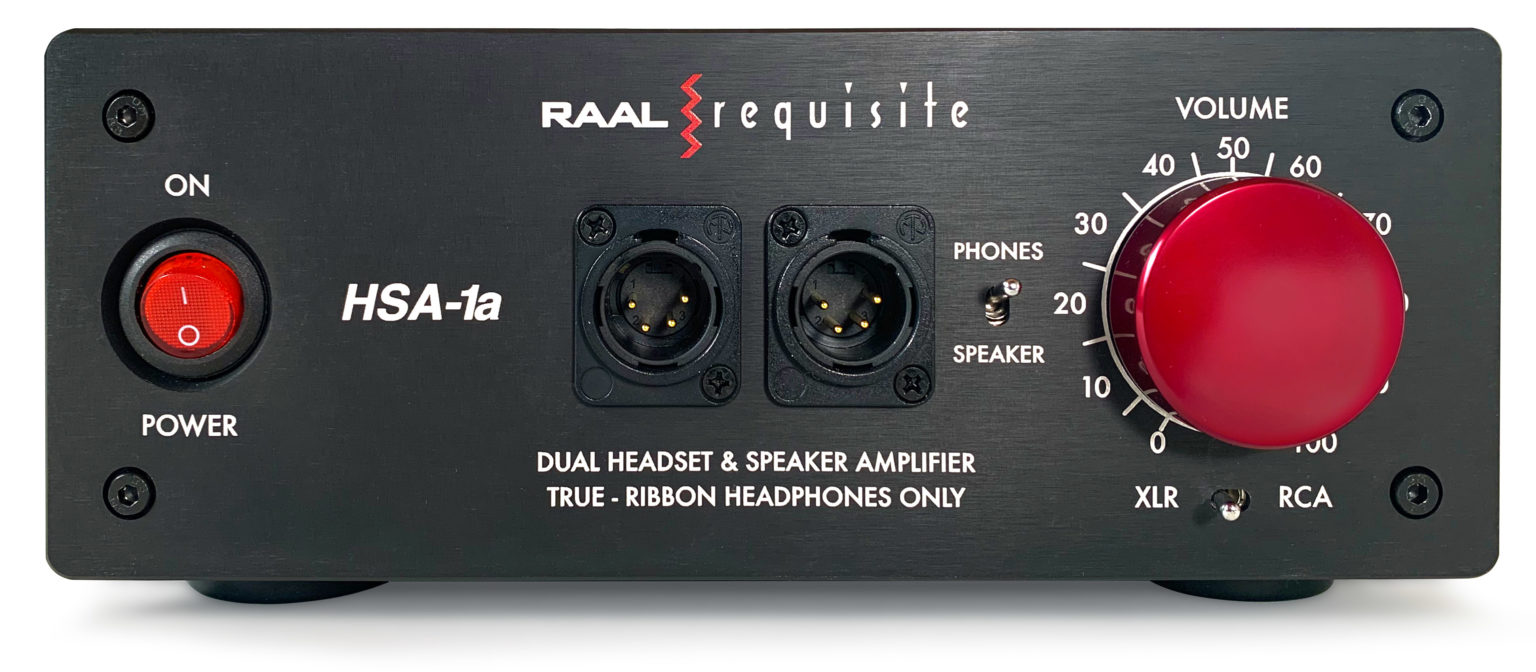

FRONT Attention: this picture is not entirely correct: On the actual model you will find both a male and female XLR4 plugs for both the SR1a and a regular headphone.

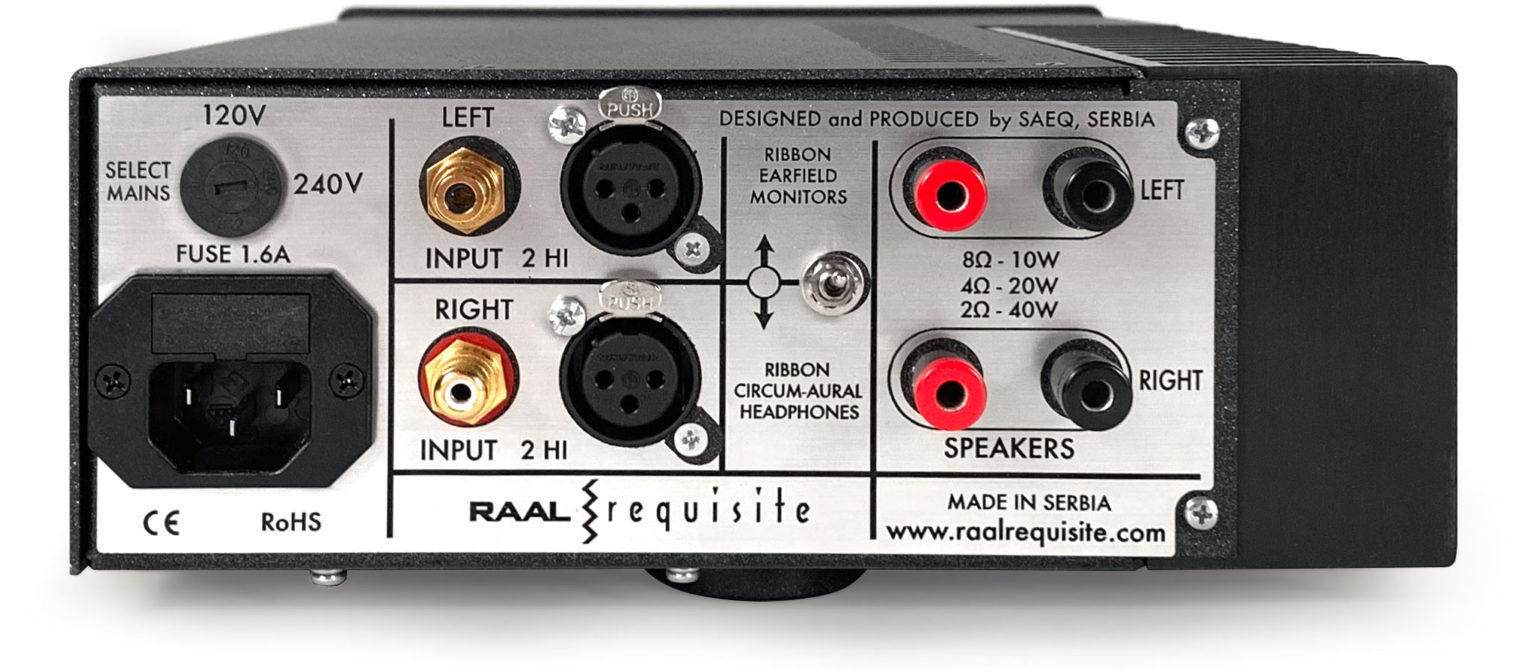

REAR
|
Load Impedance:
|
0.3 Ohm – infinity
|
|
Output Power (one chanel driven) :
|
10W /8Ω, 20W/4Ω, 40W/2Ω, 55W/1Ω @ 1khz/sine
|
|
Ribbon Headphones Drive
|
2 x RAAL-requisite SR-1a
|
|
Freq. Response:
|
100mv/ in/sin. 15hz – 500kHz
|
|
Power Bandwidth:
|
10Hz(-1dB) – 100kHz (-2dB)
|
|
Distortion:
|
< 0,5% at 1khz
|
|
Signal to Noise Ratio:
|
Better than 90dB
|
|
Input Impedance:
|
40 kOhm
|
|
Sensitivity:
|
0,5V /40kOhm
|
|
Input:
|
IN1- 2 RCA, IN2 – 2 XLR
|
|
Max Power Consumption:
|
150W , without signal 25W
|
|
Dimensions:
|
H 90, W 218, D 320mm (3.54 x 8.58 x 12.60 inches)
|
|
Weight:
|
5,3kg (11.68 pounds)
|
