ZMF – Aegis Amplifier

Description

What Zach says:

I first heard the DIY version of the Aegis Amplifier at CanJam SoCal in 2022. It was a similar moment for me as the amount of breadth, space, oomph, and realism was overwhelming. Although it was during a show, I would “steal” the seat in the room to listen as much as I could. And then, also having built up a huge tube collection by that time, once I got one in the shop I had to try the Aegis with all the tubes I had, and all the ZMF and non-ZMF headphones that I could find. Even after all the tube amp collecting and gear that I have gone through, the Aegis continued to make me excited to figure out what I was going to listen to every time because it all sounded exciting again.

MFR Info:

• Cathode Follower
  A unique circuit makes the Aegis sound unlike other amps on the market.
• Tube Rolling Paradise
  The Aegis is purpose built to sound amazing with stock tubes, or to let you go ham radio crazy and buy tons of tubes for your rolling delight.   Each sector; Rectifier, Output, and Input tubes have a plethora of options.
• Optimized Power
  With 6 different impedance options based on XLR and 1/4″ values this will drive any dynamic or planar headphone, even the almight Susvara and Tungsetens of the world! The 4.4TRRRS jack has a voltage divider for sensitive IEMs and headphones.
• Designed for ZMF
  The aesthetic design of the amplifier is inspired by aviation dashboards and iconic brands like Chicago’s own power amps like Zenith. By integrating elements from vintage audio and the unique characteristics of ZMF, the design will fit in in any environment, be it a hoarders paradise, or a suave modern minimalist chique playground.

SPECS:

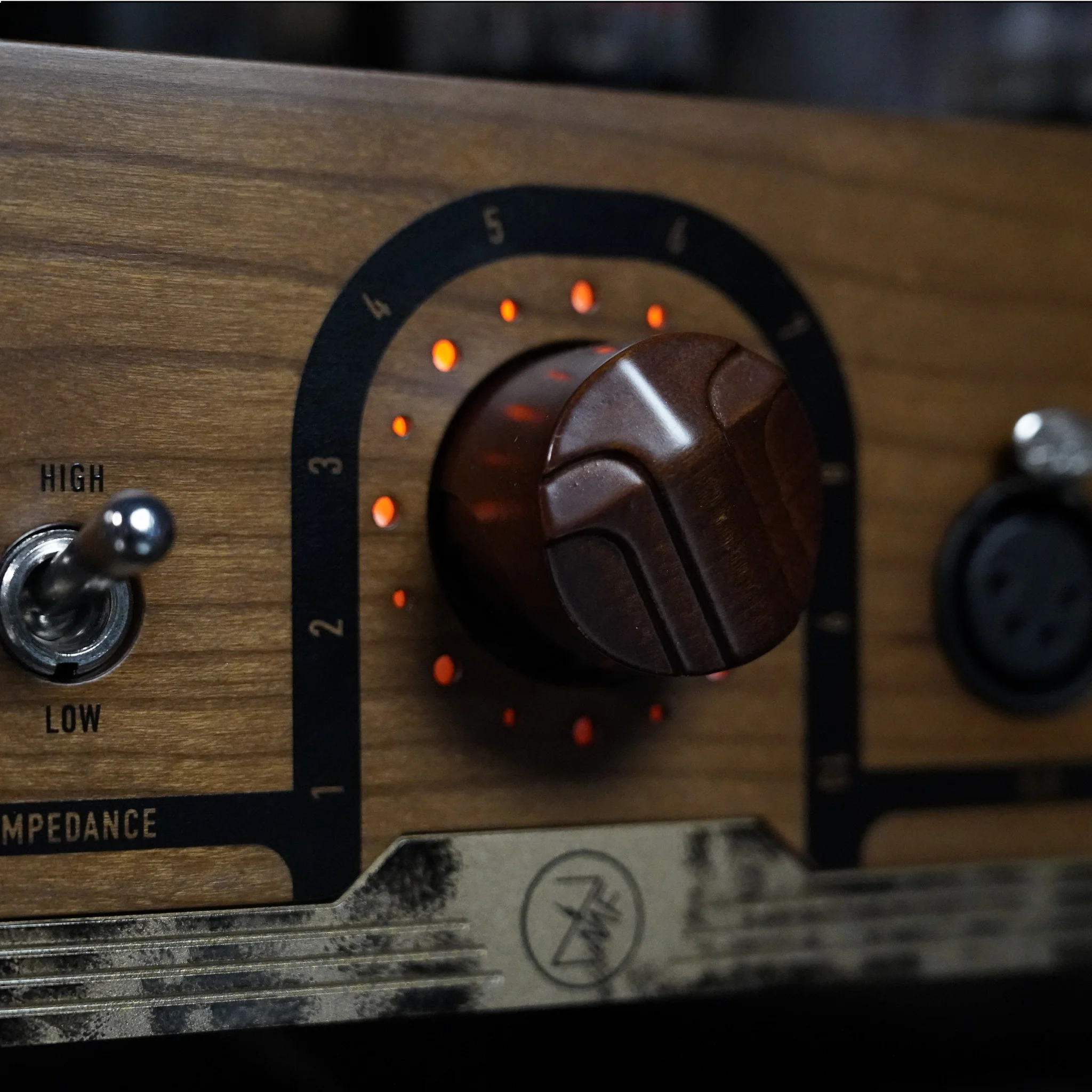

Output Impedance Range: 1/4″ Out:  Low: 5ohms, Med: 11ohms, High: 31ohms.  XLR Out: Low: 11ohms Med: 28ohms High: 85ohms

Power: Average of 2 Watts, 1/4″ and XLR 1W to 2.5W, calculated based on headphones from 8 to 300 ohms.

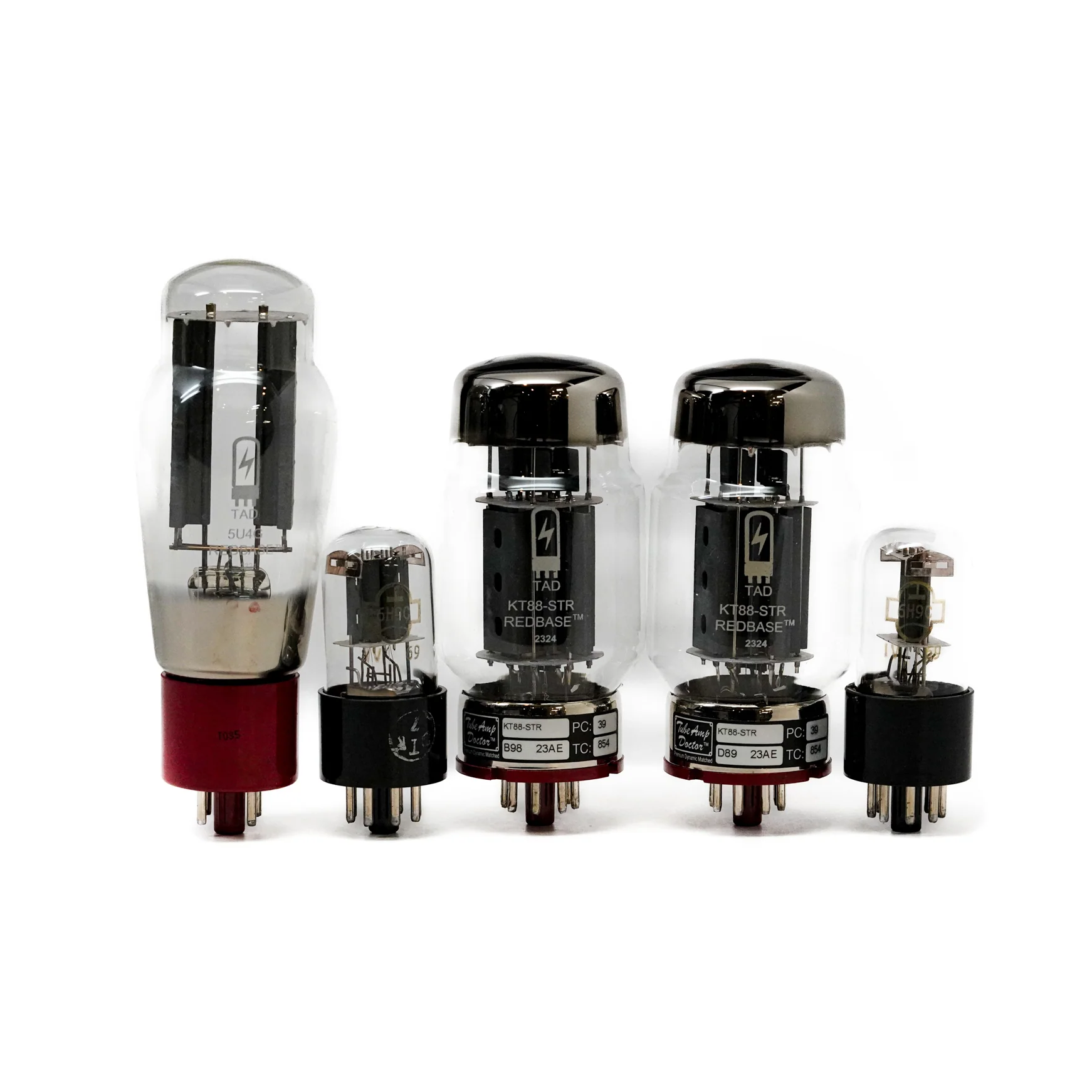

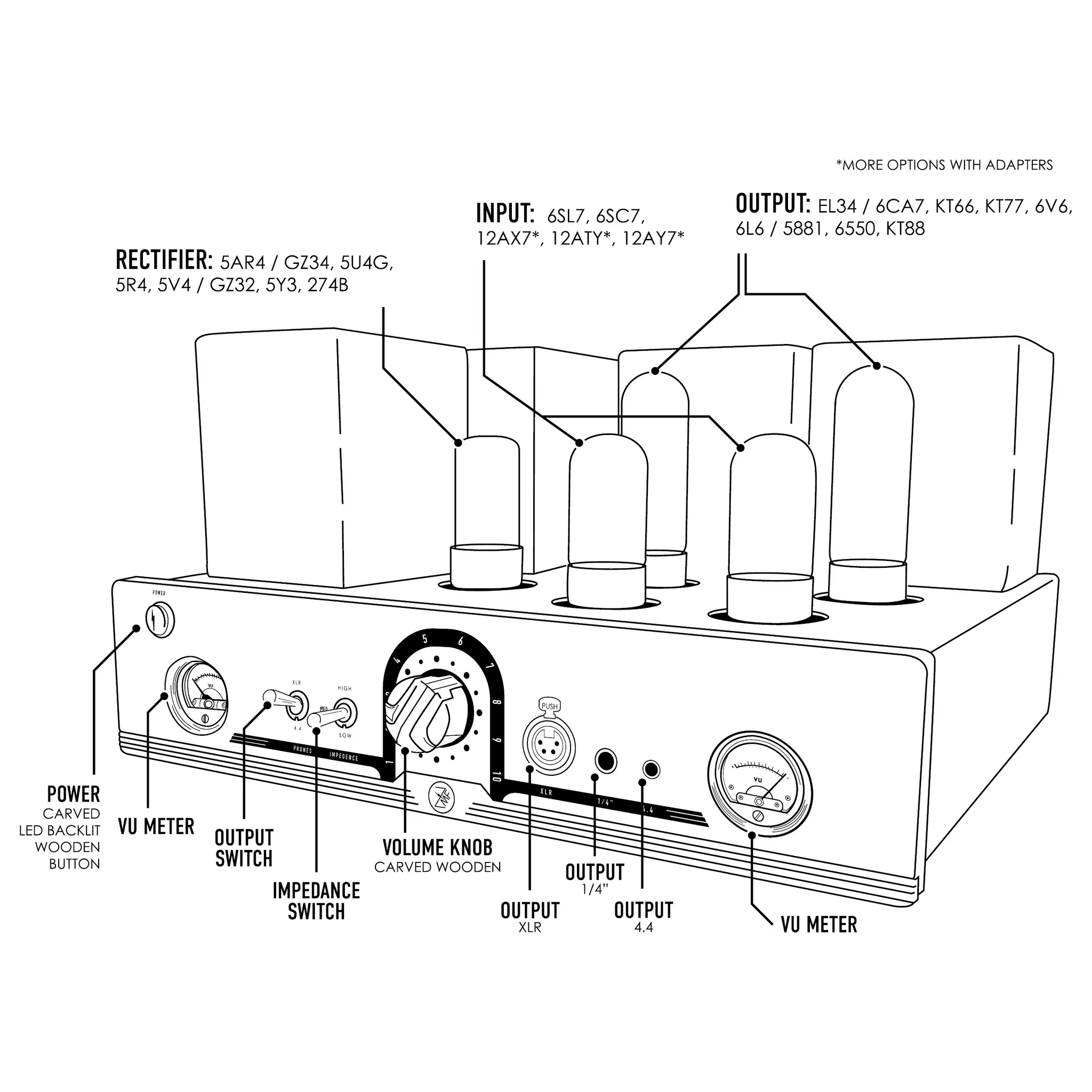

Tube Types:  – Rectifier – 5V / 2A types; GZ34/5AR4, 5V4/GZ32, 5R4, 274B. 5Y3, 5U4G

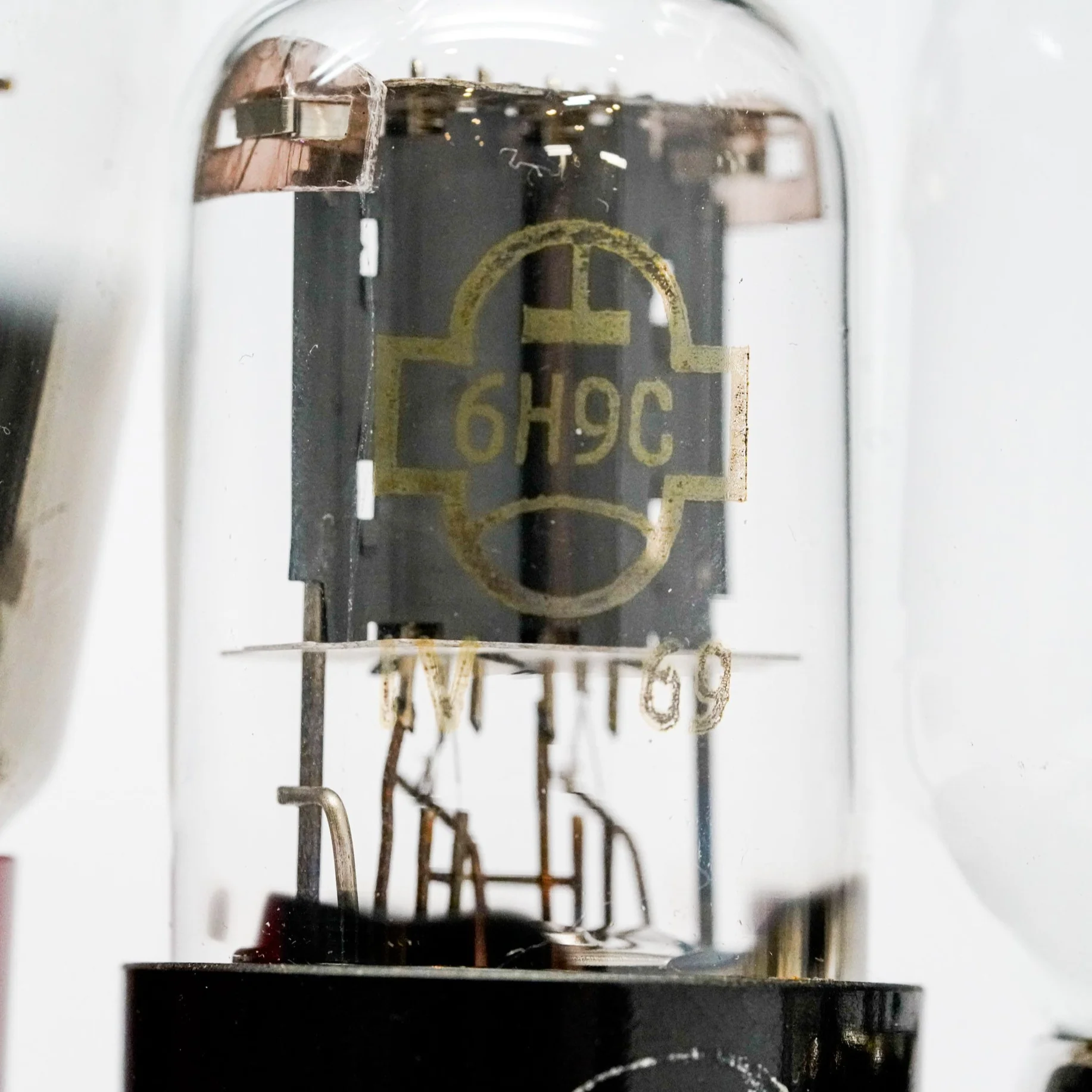

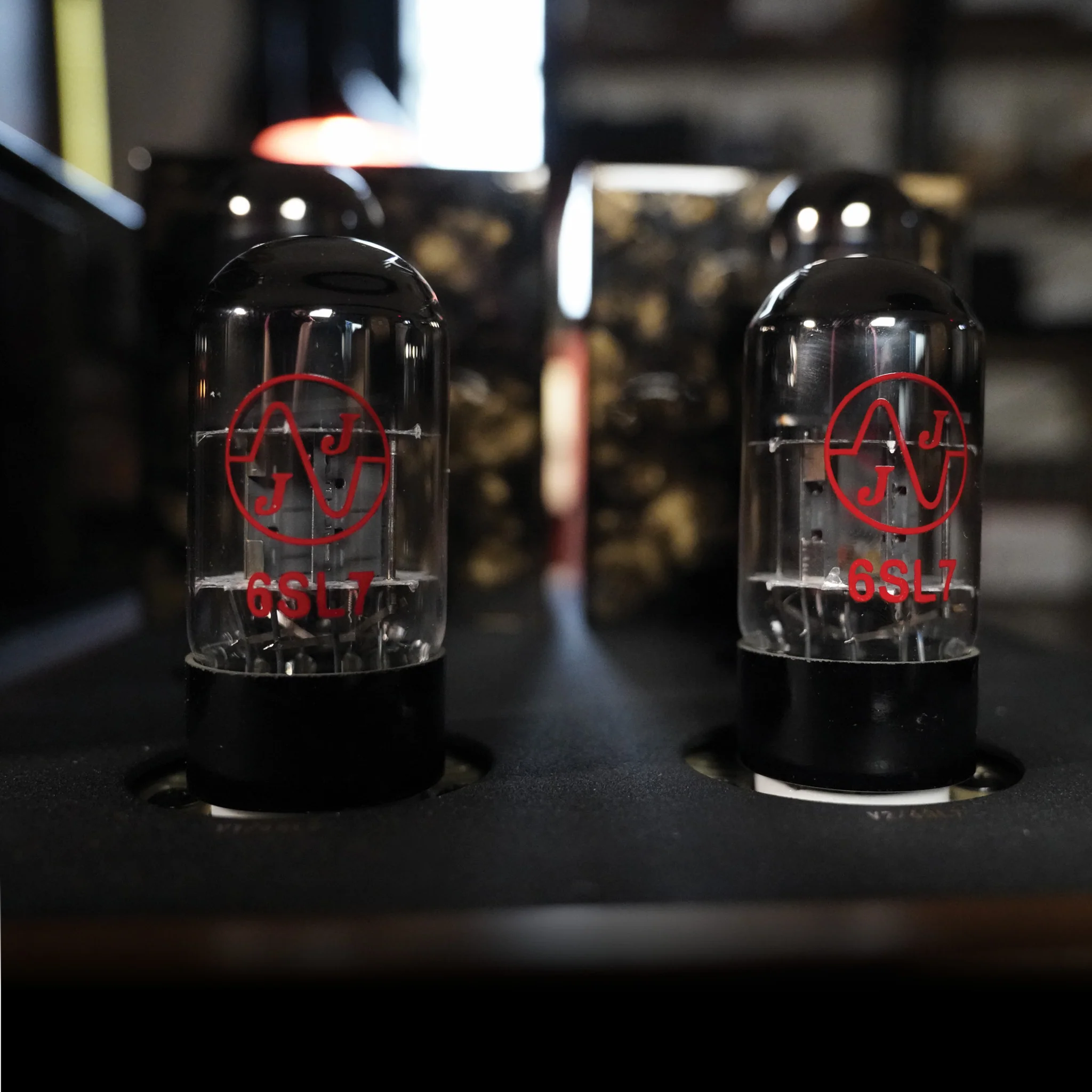

-Inputs – pair 6SL7
-Output – pair power pentodes; 6V6, 6L6, EL34, EL37, KT66, KT77, KT88, 6550.
